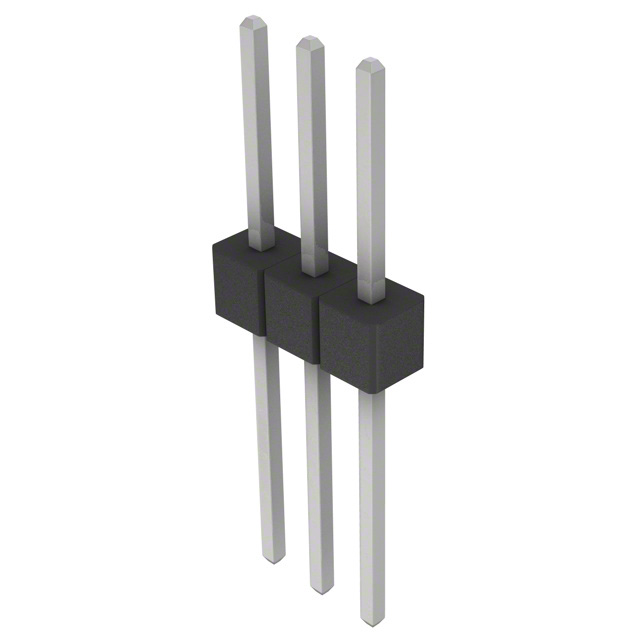

PEC03SFDN

Active

Sullins Connector Solutions

CONN HEADER VERT 3POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC03SFDN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post [x]	10.67 mm
Contact Length - Post [x]	0.42 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	21.29 mm
Overall Contact Length	0.838 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC03 Series

Part	Insulation Color	Contact Type	Termination	Number of Positions Loaded	Insulation Material	Style	Fastening Type	Number of Rows	Connector Type	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Finish - Post	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Mating	Shrouding	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]
Sullins Connector Solutions PEC03SACN	Black	Male Pin	Solder	All	Polybutylene Terephthalate (PBT)	Board to Board Cable	Push-Pull	1	Breakaway Header	UL94 V-0	2.54 çm	100 çin	0.1 in	2.54 mm	125 °C	-65 ░C	Through Hole	Tin	Phosphor Bronze	0.32 in	8.13 mm	2.54 µm	100 µin	Square	3 A	16.51 mm	0.65 in	0.1 in	2.54 mm	0.23 in	5.84 mm	Unshrouded
Sullins Connector Solutions PEC03SADN	Black	Male Pin	Solder	All	Polybutylene Terephthalate (PBT)	Board to Board Cable	Push-Pull	1	Breakaway Header	UL94 V-0	2.54 çm	100 çin	0.1 in	2.54 mm	125 °C	-65 ░C	Through Hole	Tin	Phosphor Bronze	0.42 in	10.67 mm	2.54 µm	100 µin	Square	3 A		19.05 mm	0.1 in	2.54 mm	0.23 in	5.84 mm	Unshrouded	0.75 in
Sullins Connector Solutions PEC03DADN	Black	Male Pin	Solder	All	Polybutylene Terephthalate (PBT)	Board to Board Cable	Push-Pull	2	Breakaway Header	UL94 V-0	2.54 çm	100 çin	0.1 in	2.54 mm	125 °C	-65 ░C	Through Hole	Tin	Phosphor Bronze	0.42 in	10.67 mm	2.54 µm	100 µin	Square	3 A		19.05 mm	0.1 in	2.54 mm	0.23 in	5.84 mm	Unshrouded	0.75 in	2.54 mm	0.1 in	6
Sullins Connector Solutions PEC03SABN	Black	Male Pin	Solder	All	Polybutylene Terephthalate (PBT)	Board to Board Cable	Push-Pull	1	Breakaway Header	UL94 V-0	2.54 çm	100 çin	0.1 in	2.54 mm	125 °C	-65 ░C	Through Hole	Tin	Phosphor Bronze			2.54 µm	100 µin	Square	3 A		14.22 mm	0.1 in	2.54 mm	0.23 in	5.84 mm	Unshrouded	0.56 in				0.23 in	5.84 mm
Sullins Connector Solutions PEC03SAGN	Black	Male Pin	Solder	All	Polybutylene Terephthalate (PBT)	Board to Board Cable	Push-Pull	1	Breakaway Header	UL94 V-0	2.54 çm	100 çin	0.1 in	2.54 mm	125 °C	-65 ░C	Through Hole	Tin	Phosphor Bronze	0.72 "	18.29 mm	2.54 µm	100 µin	Square	3 A		26.67 mm	0.1 in	2.54 mm	0.23 in	5.84 mm	Unshrouded	1.05 in
Sullins Connector Solutions PEC03DBCN	Black	Male Pin	Solder	All	Polybutylene Terephthalate (PBT)	Board to Board Cable	Push-Pull	2	Breakaway Header	UL94 V-0	2.54 çm	100 çin	0.1 in	2.54 mm	125 °C	-65 ░C	Through Hole Right Angle	Tin	Phosphor Bronze	0.3 "	7.62 mm	2.54 µm	100 µin	Square	3 A			0.24 in	6.1 mm	0.23 in	5.84 mm	Unshrouded		2.54 mm	0.1 in	6
Sullins Connector Solutions PEC03SAEN	Black	Male Pin	Solder	All	Polybutylene Terephthalate (PBT)	Board to Board Cable	Push-Pull	1	Breakaway Header	UL94 V-0	2.54 çm	100 çin	0.1 in	2.54 mm	125 °C	-65 ░C	Through Hole	Tin	Phosphor Bronze			2.54 µm	100 µin	Square	3 A		21.59 mm	0.1 in	2.54 mm	0.23 in	5.84 mm	Unshrouded	0.85 in				0.52 "	13.21 mm
Sullins Connector Solutions PEC03SBBN	Black	Male Pin	Solder	All	Polybutylene Terephthalate (PBT)	Board to Board Cable	Push-Pull	1	Breakaway Header	UL94 V-0	2.54 çm	100 çin	0.1 in	2.54 mm	125 °C	-65 ░C	Through Hole Right Angle	Tin	Phosphor Bronze	0.2 in	5.08 mm	2.54 µm	100 µin	Square	3 A			0.14 in	3.56 mm	0.23 in	5.84 mm	Unshrouded
Sullins Connector Solutions PEC03SBAN	Black	Male Pin	Solder	All	Polybutylene Terephthalate (PBT)	Board to Board Cable	Push-Pull	1	Breakaway Header	UL94 V-0	2.54 çm	100 çin	0.1 in	2.54 mm	125 °C	-65 ░C	Through Hole Right Angle	Tin	Phosphor Bronze			2.54 µm	100 µin	Square	3 A			0.14 in	3.56 mm	0.23 in	5.84 mm	Unshrouded					0.1 in	2.54 mm
Sullins Connector Solutions PEC03SFDN	Black	Male Pin	Solder	All	Polybutylene Terephthalate (PBT)	Board to Board Cable	Push-Pull	1	Breakaway Header	UL94 V-0	2.54 çm	100 çin	0.1 in	2.54 mm	125 °C	-65 ░C	Through Hole	Tin	Phosphor Bronze	0.42 in	10.67 mm	2.54 µm	100 µin	Square	3 A		21.29 mm	0.1 in	2.54 mm	0.318 "		Unshrouded	0.838 in						8.08 mm
