Description
General part information
21038961525

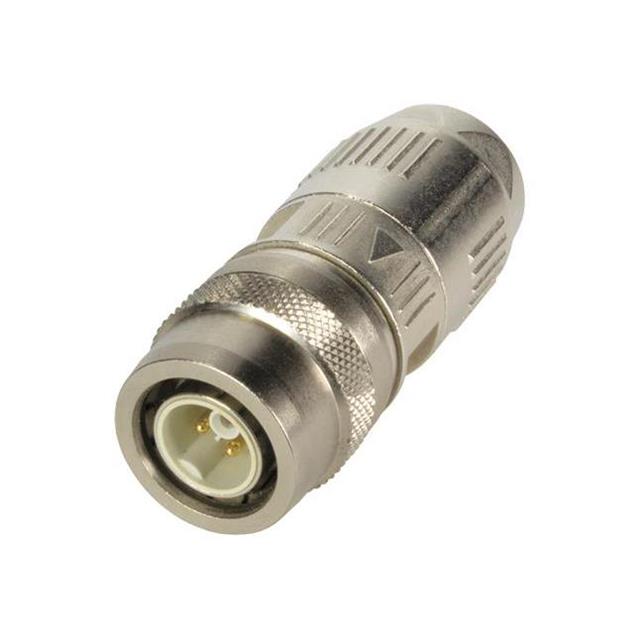

5 (4 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut, Strain Relief
Technical Specifications
Parameters and characteristics for this part
| Specification | 21038961525 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Type | Crimp |
| Fastening Type | Push-Pull |
| Features | Coupling Nut, Strain Relief, Backshell |
| Housing Color | Silver |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Insert Material | PA, Nylon, Polyamide |
| Mounting Type | Free Hanging (In-Line) |
| Note | Insert Only, Contacts Not Included, Requires Shell |
| Number of Positions | 5 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Keyed |
| Position Types | PE |
| Primary Material | Metal |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M12-5 |
| Shielding | Shielded |
| Type | For Male Pins |
