HE-010-FS
ActiveTE Connectivity AMP Connectors

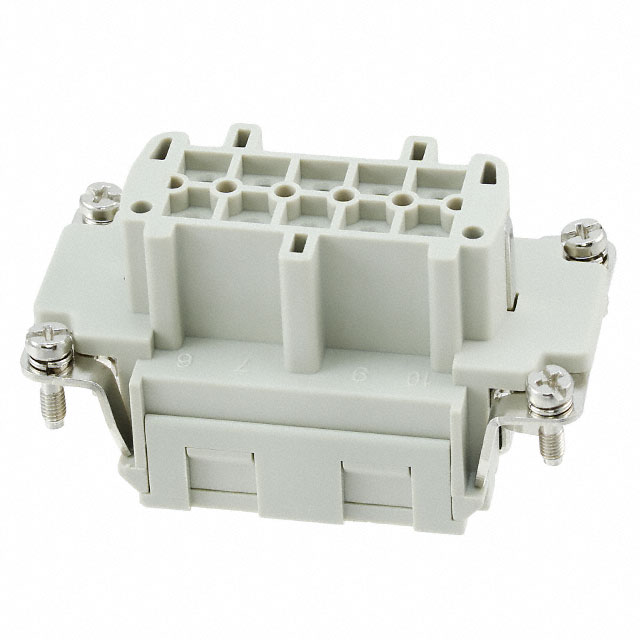

INSERT FEMALE 10POS CLAMP
Deep-Dive with AI
Search across all available documentation for this part.
HE-010-FS
ActiveTE Connectivity AMP Connectors
INSERT FEMALE 10POS CLAMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HE-010-FS | HE-010 Series |
|---|---|---|
| Current Rating (Amps) | 16 A | 16 A |
| Gender | Female | Female, Male |
| Housing Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions | 10 | 10 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Termination Style | Tension Clamp | Tension Clamp, Screw |
| Voltage Rating | 500 V | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.51 | |
| 10 | $ 11.31 | |||
| 100 | $ 9.81 | |||
| 1000 | $ 8.38 | |||
HE-010 Series
INSERT FEMALE 10POS CLAMP
| Part | Current Rating (Amps) | Material Flammability Rating | Termination Style | Gender | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors HE-010-FS | 16 A | UL94 V-0 | Tension Clamp | Female | 10 | 125 °C | -40 °C | Polycarbonate (PC) | 500 V |
TE Connectivity AMP Connectors HE-010-F | 16 A | UL94 V-0 | Screw | Female | 10 | 125 °C | -40 °C | Polycarbonate (PC) | 500 V |
TE Connectivity AMP Connectors HE-010-MS | 16 A | UL94 V-0 | Tension Clamp | Male | 10 | 125 °C | -40 °C | Polycarbonate (PC) | 500 V |
Description
General part information
HE-010 Series
Female Insert 10 Position Tension Clamp
Documents
Technical documentation and resources
No documents available
