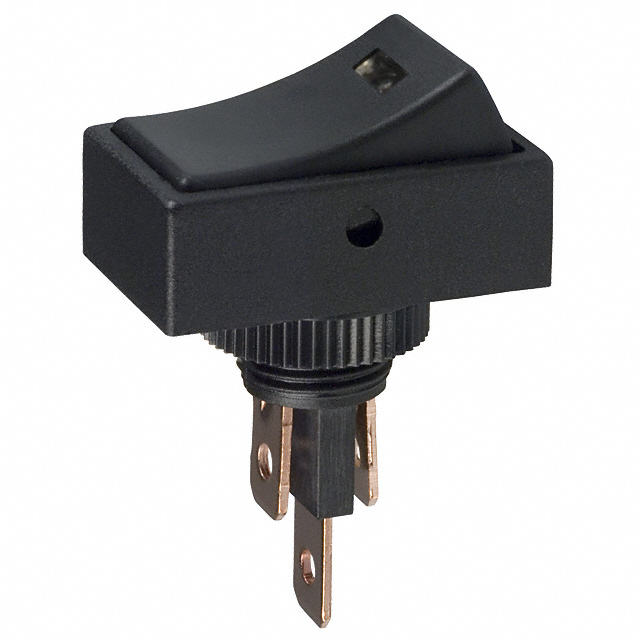

Specification	CLS-RR11A12250B

Actuator Marking	No Marking
Actuator Type	Concave (Curved), Illuminated
Circuit	SPST
Color	Blue
Color - Actuator/Cap	Black
Current Rating	25 A
Illumination Type	LED
Mounting Type	Threaded Body with Nut, Panel Mount
Panel Cutout Diameter	12 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.250")	0.25 in
Switch Function	On-Off
Termination Style	Quick Connect
Voltage Rating - DC	12 V

CLS-RR11 Series

Part	Quick Connect Size (0.250")	Termination Style	Voltage Rating - DC	Actuator Type	Mounting Type	Color - Actuator/Cap	Panel Cutout Shape	Panel Cutout Width	Panel Cutout Length	Actuator Marking	Switch Function	Circuit	Color	Illumination Type	Current Rating	Panel Cutout Diameter	Voltage Rating - AC	Quick Connect Size (0.187")
Lumex Opto/Components Inc. CLS-RR11A12251R	0.25 in	Quick Connect	12 V	Concave (Curved) Illuminated	Panel Mount Snap-In	Black	Rectangular	11.6 mm	28.7 mm	No Marking	On-Off	SPST	Red	LED	25 A
Lumex Opto/Components Inc. CLS-RR11A12250Y	0.25 in	Quick Connect	12 V	Concave (Curved) Illuminated	Panel Mount Threaded Body with Nut	Black	Circular			No Marking	On-Off	SPST	Yellow	LED	25 A	12 mm
Lumex Opto/Components Inc. CLS-RR11A12252G	0.25 in	Quick Connect	12 V	Concave (Standard V) Illuminated	Panel Mount Snap-In	Black	Rectangular	11.6 mm	28.7 mm	No Marking	On-Off	SPST	Green	LED	20 A
Lumex Opto/Components Inc. CLS-RR11A12252Y	0.25 in	Quick Connect	12 V	Concave (Standard V) Illuminated	Panel Mount Snap-In	Black	Rectangular	11.6 mm	28.7 mm	No Marking	On-Off	SPST	Yellow	LED	20 A
Lumex Opto/Components Inc. CLS-RR11A12252R	0.25 in	Quick Connect	12 V	Concave (Standard V) Illuminated	Panel Mount Snap-In	Black	Rectangular	11.6 mm	28.7 mm	No Marking	On-Off	SPST	Red	LED	20 A
Lumex Opto/Components Inc. CLS-RR11A12252B	0.25 in	Quick Connect	12 V	Concave (Standard V) Illuminated	Panel Mount Snap-In	Black	Rectangular	11.6 mm	28.7 mm	No Marking	On-Off	SPST	Blue	LED	20 A
Lumex Opto/Components Inc. CLS-RR11A120250G	0.25 in	Quick Connect		Concave (Curved) Illuminated	Panel Mount Snap-In	Black	Rectangular	13.8 mm	27.8 mm	No Marking	On-Off	SPST	Green	LED	16 A		125 V
Lumex Opto/Components Inc. CLS-RR11A120250R	0.25 in	Quick Connect		Concave (Curved) Illuminated	Panel Mount Snap-In	Black	Rectangular	13.8 mm	27.8 mm	No Marking	On-Off	SPST	Red	LED	16 A		125 V
Lumex Opto/Components Inc. CLS-RR11A125500R		Quick Connect		Concave (Curved) Illuminated	Panel Mount Snap-In	Black	Rectangular	13 mm	19.4 mm	No Marking	On-Off	SPST	Red	LED	10 A		125 V	0.187 in
Lumex Opto/Components Inc. CLS-RR11A125500Y		Quick Connect		Concave (Curved) Illuminated	Panel Mount Snap-In	Black	Rectangular	13 mm	19.4 mm	No Marking	On-Off	SPST	Yellow	LED	10 A		125 V	0.187 in
