2946560

Active

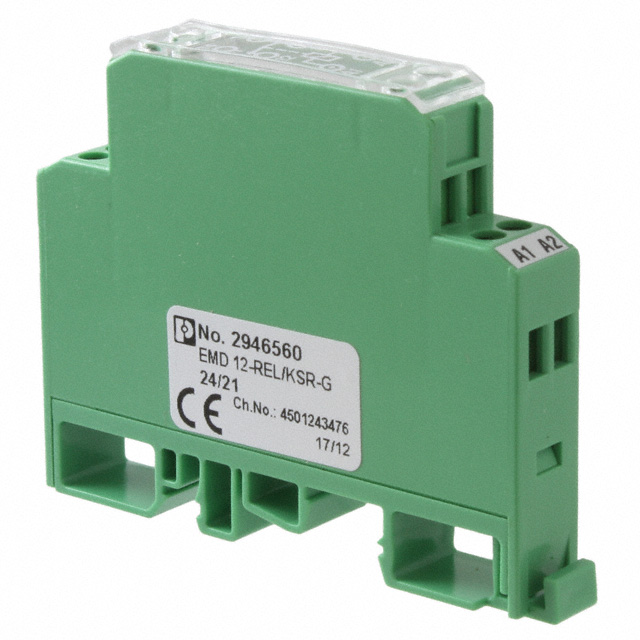

Phoenix Contact

RELAY GEN PURPOSE SPDT 5A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 5A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	2946560

Coil Current	22 mA
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	5 A
Features	Socket Included, Diode, Lighted Indicator
Mounting Type	DIN Rail
Operate Time	7 ms
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Relay Type	General Purpose
Release Time	11 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

RELAY GEN PURPOSE SPDT 5A 24V

Part	Coil Current	Contact Material	Features	Contact Form	Coil Voltage	Mounting Type	Switching Voltage	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Relay Type	Release Time	Coil Type	Contact Rating (Current)
Phoenix Contact 2946560	22 mA	Silver Cadmium Oxide (AgCdO)	Diode, Lighted Indicator, Socket Included	SPDT (1 Form C)	24 VDC	DIN Rail	250 VAC, 250 VDC	Screw Terminal	50 °C	-20 C	7 ms	General Purpose	11 ms	Non Latching	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 24VDC Coil DIN Rail
