102917-5
ActiveTE Connectivity AMP Connectors

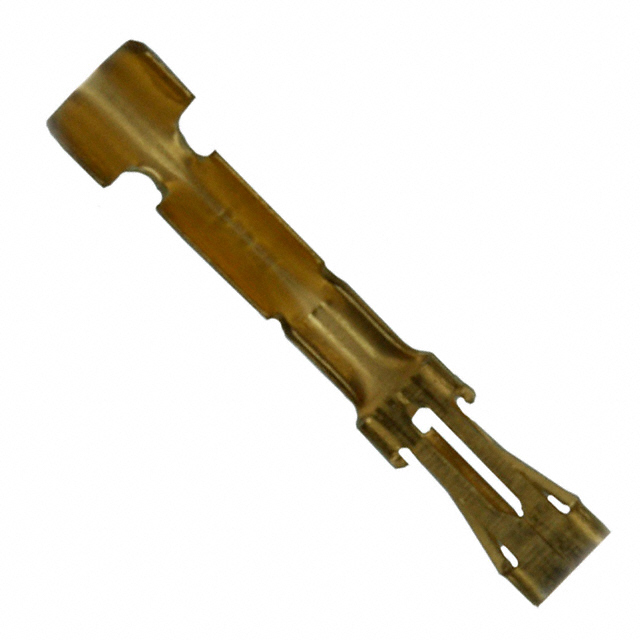

CONN SOCKET 27-32AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
102917-5
ActiveTE Connectivity AMP Connectors
CONN SOCKET 27-32AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 102917-5 | 102917 Series |
|---|---|---|
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 - 30 Áin |
| Contact Finish Thickness | 0.38 µm | 0.38 - 0.76 Ám |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 32 AWG | 32 AWG |
| Wire Gauge [Min] | 27 AWG | 27 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.34 | |
| 10 | $ 0.30 | |||
| 25 | $ 0.30 | |||
| 50 | $ 0.30 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.19 | |||
| 2500 | $ 0.19 | |||
| Tape & Reel (TR) | 12500 | $ 0.18 | ||
| 25000 | $ 0.17 | |||
| 37500 | $ 0.16 | |||
| 62500 | $ 0.16 | |||
102917 Series
CONN SOCKET 27-32AWG CRIMP GOLD
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Pin or Socket | Contact Finish |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 102917-2 | 27 AWG | 32 AWG | 0.76 Ám | 30 Áin | Crimp | Socket | Gold |
TE Connectivity AMP Connectors 102917-5 | 27 AWG | 32 AWG | 0.38 µm | 15 µin | Crimp | Socket | Gold |
TE Connectivity AMP Connectors 102917-1 | 27 AWG | 32 AWG | 0.76 Ám | 30 Áin | Crimp | Socket | Gold |
Description
General part information
102917 Series
Socket Contact Gold 27-32 AWG Crimp
