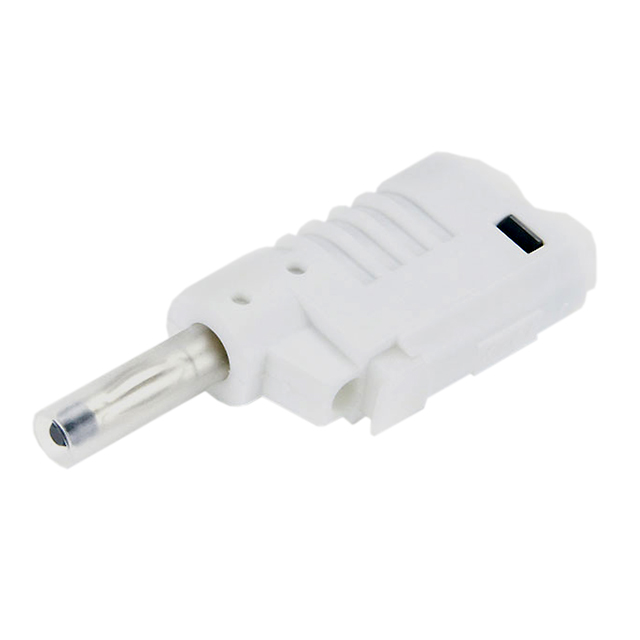

CT2017-9
ActiveCal Test Electronics
BANANA TEST CONNECTOR, PLUG, CABLE MOUNT, 36 A, 1.2 KV, NICKEL PLATED CONTACTS, WHITE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDrawing EN
CT2017-9
ActiveCal Test Electronics
BANANA TEST CONNECTOR, PLUG, CABLE MOUNT, 36 A, 1.2 KV, NICKEL PLATED CONTACTS, WHITE
Deep-Dive with AI
DocumentsDrawing EN
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CT2017-9 | CT2017 Series |
|---|---|---|
| Body Material | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Color | White | White, Blue |
| Contact Finish | Nickel | Nickel |
| Contact Material | Beryllium Copper | Beryllium Copper |
| Gender | Male | Male |
| Insulation | Retractable, Sheathed | Retractable, Sheathed |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -20 C | -20 C |
| Plug/Mating Plug Diameter | Standard Banana | Standard Banana |
| Termination | Solderless | Solderless |
| Type | Banana Plug, Stackable | Banana Plug, Stackable |
| Wire Gauge | 12 AWG | 12 AWG |
CT2017 Series
BANANA TEST CONNECTOR, PLUG, CABLE MOUNT, 36 A, 1.2 KV, NICKEL PLATED CONTACTS, WHITE
| Part | Insulation | Type | Plug/Mating Plug Diameter | Contact Material | Body Material | Color | Mounting Type | Wire Gauge | Termination | Contact Finish | Gender | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cal Test Electronics CT2017-9 | Retractable, Sheathed | Banana Plug, Stackable | Standard Banana | Beryllium Copper | Nylon, Polyamide (PA) | White | Free Hanging (In-Line) | 12 AWG | Solderless | Nickel | Male | -20 C | 80 C |
Cal Test Electronics CT2017-6 | Retractable, Sheathed | Banana Plug, Stackable | Standard Banana | Beryllium Copper | Nylon, Polyamide (PA) | Blue | Free Hanging (In-Line) | 12 AWG | Solderless | Nickel | Male | -20 C | 80 C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CT2017 Series
Banana Plug, Stackable Connector Standard Banana Solderless White
