0297010.WXT
ActiveLITTELFUSE

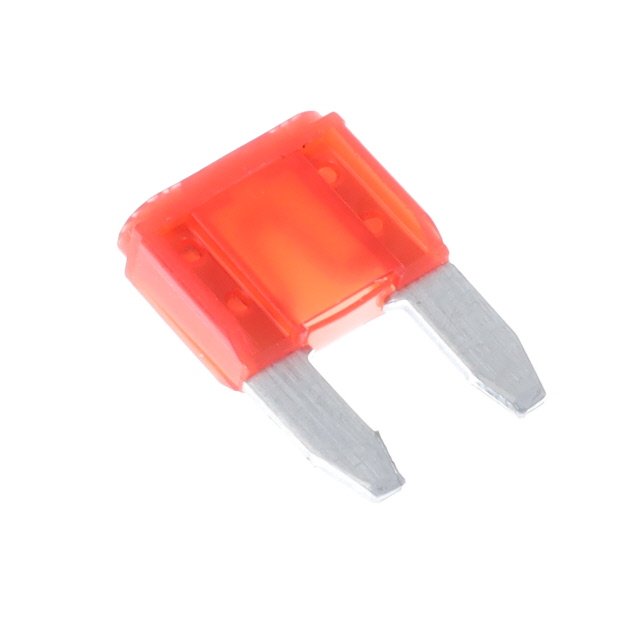

FUSE - MINI 32V TIN PLATED 10A 3000 PC/ BULK
0297010.WXT
ActiveLITTELFUSE
FUSE - MINI 32V TIN PLATED 10A 3000 PC/ BULK
Description
General part information
0297010.WXT
10 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature
Technical Specifications
Parameters and characteristics for this part
| Specification | 0297010.WXT |
|---|---|
| Approval Agency | UR |
| Breaking Capacity | 1 kA |
| Color | Red |
| Current Rating | 10 A |
| DC Cold Resistance | 7.42 Ohms |
| Fuse Type | Automotive |
| Melting I²t | 93 |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Blade, Miniature |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.346 in |
| Size / Dimension Length | 0.429 in |
| Size / Dimension Width | 0.15 in |
| Voltage Rating - DC | 32 V |
