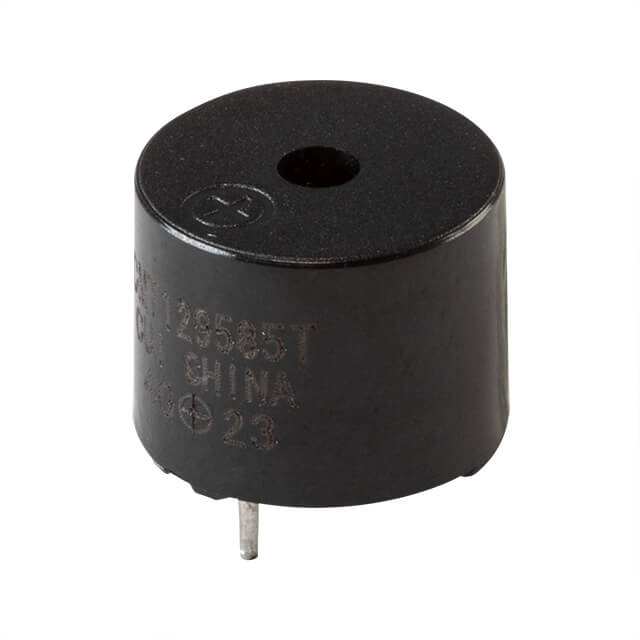

CMT-1295-85T
ActiveCUI Devices
12MM, MAGNETIC, 3V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMT-1295-85T
ActiveCUI Devices
12MM, MAGNETIC, 3V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMT-1295-85T |
|---|---|
| Current - Supply | 45 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 2.4 kHz |
| Height - Seated (Max) [Max] | 0.394 in |
| Height - Seated (Max) [Max] | 10 mm |
| Input Type | Zero-Peak Signal |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Port Location | Top |
| Ratings | Washable |
| Size / Dimension [diameter] | 12 mm |
| Size / Dimension [diameter] | 0.472 in |
| Sound Pressure Level (SPL) | 85 dB |
| Technology | Magnetic |
| Termination | PC Pins |
| Voltage - Rated | 3 VDC |
| Voltage Range [Max] | 5 VDC |
| Voltage Range [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.75 | |
| 10 | $ 0.63 | |||
| 25 | $ 0.58 | |||
| 40 | $ 0.55 | |||
| 100 | $ 0.52 | |||
| 300 | $ 0.48 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.42 | |||
| 4900 | $ 0.39 | |||
Description
General part information
CMT-1295-85T
Buzzers Transducer, Externally Driven Magnetic 3 V 45mA 2.4kHz 85dB @ 3V, 10cm Through Hole PC Pins
