364A595

Active

Winchester Interconnect

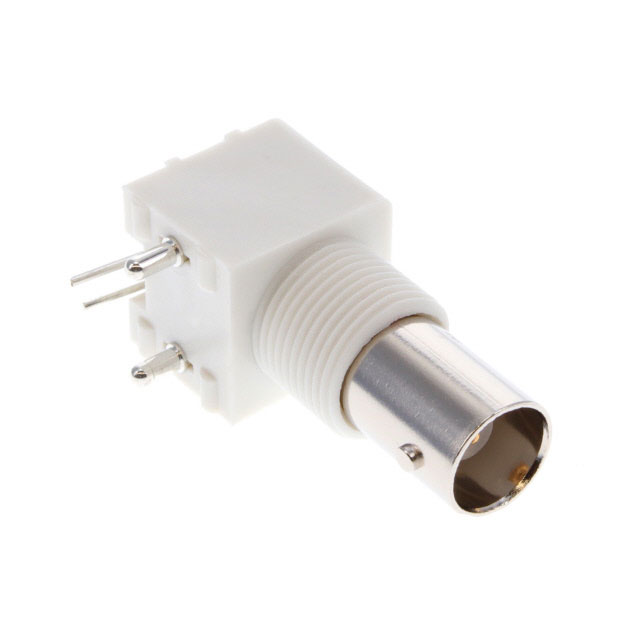

CONN BNC JACK R/A 50 OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

364A595

Active

Winchester Interconnect

CONN BNC JACK R/A 50 OHM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	364A595	- Series

	-	-
Accessory Type	-	Nut, Knurled
Adapter Series	-	BNC to SMA, Mini, Mini to UHF, UHF, BNC to TNC, F to F, TNC to UHF
Adapter Type	-	Plug to Jack, Plug to Plug
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Center Contact Material	Phosphor Bronze	Brass, Phosphor Bronze
Center Contact Plating	Gold	Gold
Center Gender	-	Male to Male
Color	-	Silver
Connector Style	BNC	BNC, SMA
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder Cup, Solder
Conversion Type	-	Between Series, Same Series
Convert From (Adapter End)	-	SMA Plug, Male Pin, BNC Plug, Male Pin, UHF Mini Plug, Male Pin, F Plug, Male Pin, N Plug, Male Pin
Convert To (Adapter End)	-	Female Socket, N Jack, SMA Plug, Male Pin, UHF Mini Jack, TNC Jack, F Plug, UHF Jack
Dielectric Material	Polypropylene (PP)	Polytetrafluoroethylene (PTFE), Polypropylene (PP)
Fastening Type	Bayonet Lock	Bayonet Lock, Threaded
Features	Isolated, Board Guide	Isolated, Board Guide
For Use With/Related Products	-	BNC Jacks, V-Bite® Series
Frequency - Max [Max]	4 GHz	1 - 500 GHz
Housing Color	White, Silver	Silver, White
Impedance	50 Ohms	50 - 75 Ohms
Impedance	-	Non-Constant
Ingress Protection	Weatherproof	Weatherproof
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Feature	Bulkhead - Front Side Nut	Flange, Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Free Hanging (In-Line), Through Hole, Right Angle, Panel Mount
Number of Ports	1	1
Operating Temperature [Max]	165 °C	100 - 165 °C
Operating Temperature [Min]	-40 °C	-65 - -40 ░C
Shield Termination	Solder	Solder
Style	-	Straight, Right Angle
Voltage Rating	500 V	500 V

- Series

CONN KNURLED NUT FOR BNC JACKS

Part	Body Material	Connector Style	For Use With/Related Products	Color	Body Finish	Accessory Type	Mounting Type	Center Contact Plating	Convert To (Adapter End)	Style	Conversion Type	Convert From (Adapter End)	Dielectric Material	Adapter Type	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Impedance	Number of Ports	Frequency - Max [Max]	Mounting Feature	Contact Termination	Connector Type	Shield Termination	Mating Cycles	Voltage Rating	Insertion Loss	Ingress Protection	Fastening Type	Features	Adapter Series	Center Gender	Impedance
Winchester Interconnect 364KNT	Brass	BNC	BNC Jacks	Silver	Nickel	Knurled, Nut
Winchester Interconnect 9311505	Brass				Nickel		Free Hanging (In-Line)	Gold	Female Socket, N Jack	Straight	Between Series	SMA Plug, Male Pin	Polytetrafluoroethylene (PTFE)	Plug to Jack	Brass
Winchester Interconnect 917A524	Brass	SMA			Nickel			Gold					Polytetrafluoroethylene (PTFE)		Brass	-65 ░C	165 °C	Silver	50 Ohms	1	12.5 GHz	Flange	Solder Cup	Female Socket, Jack	Solder	500
Winchester Interconnect 364A795	Brass	BNC			Nickel		Panel Mount, Right Angle, Through Hole	Gold					Polypropylene (PP)		Phosphor Bronze	-40 °C	165 °C	Silver, White	75 Ohms	1	1 GHz	Bulkhead - Front Side Nut	Solder	Female Socket, Jack	Solder	500	500 V	0.2 dB	Weatherproof	Bayonet Lock	Board Guide, Isolated
Winchester Interconnect 361KNT	Brass	BNC	V-Bite® Series	Silver	Nickel	Knurled, Nut
Winchester Interconnect KC-79-238-M06
Winchester Interconnect 3309505	Brass				Nickel		Free Hanging (In-Line)	Gold	Male Pin, SMA Plug	Straight	Between Series	BNC Plug, Male Pin		Plug to Plug	Brass	-55 °C	100 °C		50 Ohms		1 GHz									Bayonet Lock, Threaded		BNC to SMA	Male to Male
Winchester Interconnect 651A505	Brass				Nickel		Free Hanging (In-Line), Right Angle	Gold	Female Socket, UHF Mini Jack	Right Angle	Same Series	UHF Mini Plug, Male Pin		Plug to Jack	Brass, Phosphor Bronze						2 GHz					500						Mini, Mini to UHF, UHF		Non-Constant
Winchester Interconnect 3315505	Brass				Nickel		Free Hanging (In-Line)	Gold	Female Socket, TNC Jack	Straight	Between Series	BNC Plug, Male Pin		Plug to Jack	Brass	-55 °C	100 °C		50 Ohms		1 GHz									Bayonet Lock, Threaded		BNC to TNC
Winchester Interconnect 830A509	Brass				Nickel		Free Hanging (In-Line)		F Plug, Male Pin	Straight	Same Series	F Plug, Male Pin	Polypropylene (PP)	Plug to Plug	Brass						500 MHz											F to F	Male to Male	Non-Constant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.11
		10	$ 6.89
		25	$ 6.46
		50	$ 6.19

Description

General part information

- Series

BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder
