TG-AH486-640-320-0.5-1A
Obsoletet-Global Technology
THERM PAD 640X320MM W/ADH GRAY
TG-AH486-640-320-0.5-1A
Obsoletet-Global Technology
THERM PAD 640X320MM W/ADH GRAY
Description
General part information
TG-AH486-640-320-0.5-1A

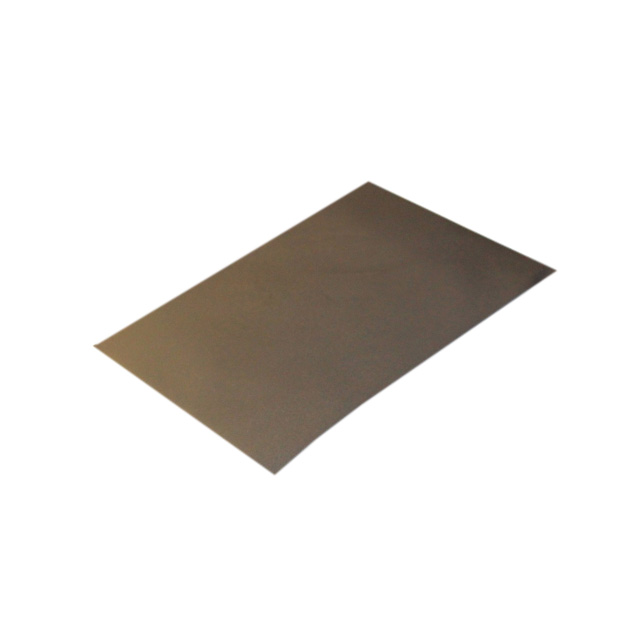

Thermal Pad Gray 640.00mm x 320.00mm Rectangular Adhesive - One Side
Technical Specifications
Parameters and characteristics for this part
| Specification | TG-AH486-640-320-0.5-1A |
|---|---|
| Adhesive | Adhesive - One Side |
| Color | Gray |
| Material | Silicone Elastomer |
| Outline Length | 640 mm |
| Outline Width | 320 mm |
| Shape | Rectangular |
| Shelf Life | 12 Months |
| Shelf Life Start | Date of Purchase |
| Thermal Conductivity | 3.2 W/m-K |
| Thickness | 0.0197 in |
| Type | Sheet, Conductive Pad |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
