10162582-1134115LF
ActiveAmphenol ICC (FCI)

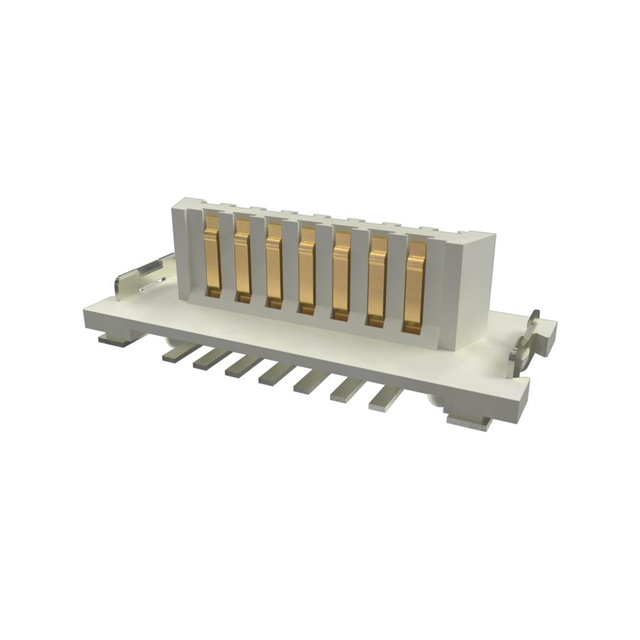

CONAN LITE HEADER, 15POSITION
Deep-Dive with AI
Search across all available documentation for this part.
10162582-1134115LF
ActiveAmphenol ICC (FCI)
CONAN LITE HEADER, 15POSITION
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10162582-1134115LF |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Pick and Place, Board Guide |
| Height Above Board | 0.86 mm |
| Height Above Board | 0.034 " |
| Mated Stacking Heights | 4.15 mm, 7 mm, 4.5 mm, 5 mm, 6 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.24 | |
| 10 | $ 1.05 | |||
| 100 | $ 0.89 | |||
| Digi-Reel® | 1 | $ 1.24 | ||
| 10 | $ 1.05 | |||
| 100 | $ 0.89 | |||
| Tape & Reel (TR) | 800 | $ 0.77 | ||
| 1600 | $ 0.73 | |||
| 2400 | $ 0.71 | |||
| 4000 | $ 0.69 | |||
| 5600 | $ 0.67 | |||
| 8000 | $ 0.66 | |||
Description
General part information
10162582 Series
15 Position Connector Plug, Center Strip Contacts Surface Mount Gold
