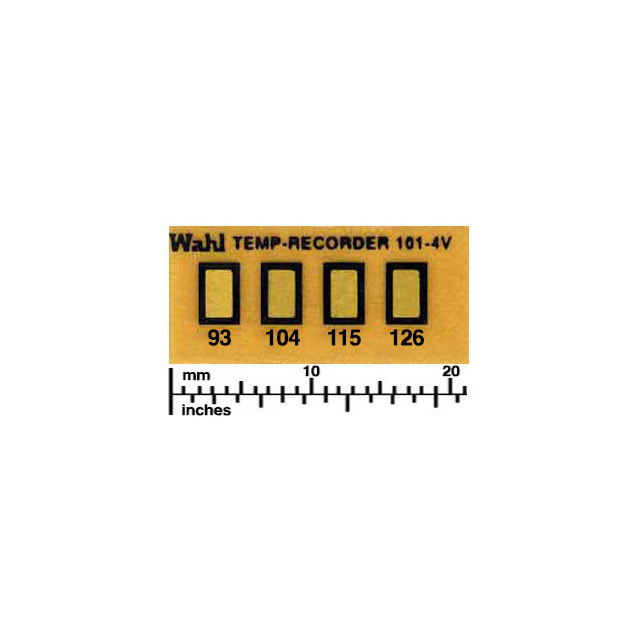

101-4-094VC

Active

Wahl Temp-Plate®

MINI FOUR-POSITION IC BATCH AND

Deep-Dive with AI

Search across all available documentation for this part.

101-4-094VC

Active

Wahl Temp-Plate®

MINI FOUR-POSITION IC BATCH AND

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	101-4-094VC	101-4 Series

Application Specifics	Assorted	Assorted
Applications	General	General
Arrangement	Symbol and Text	Symbol and Text
Color - Background	Red	Red
Color - Legend	White	White
Features	Grease Resistant, Water Resistant, Self-Adhesive Edge, Oil Resistant, Fuel Resistant	Grease Resistant, Water Resistant, Self-Adhesive Edge, Oil Resistant, Fuel Resistant
Language	English	English
Legend (Text)	93 °C, 104 °C, 115 °C, 126 °C	65 - 420 °F
Length [x]	20.83 mm	20.83 mm
Length [x]	0.82 "	0.82 "
Mounting Type	Adhesive, Permanent	Adhesive, Permanent
Print Type	Pre-Printed	Pre-Printed
Shape	Rectangle	Rectangle
Width [y]	0.38 in	0.38 in
Width [y]	9.65 mm	9.65 mm

101-4 Series

MINI FOUR-POSITION TEMP-PLATE 1

Part	Width [y]	Width [y]	Features	Legend (Text)	Print Type	Mounting Type	Length [x]	Length [x]	Shape	Arrangement	Application Specifics	Language	Color - Background	Color - Legend	Applications
Wahl Temp-Plate® 101-4-170F	0.38 in	9.65 mm	Fuel Resistant, Grease Resistant, Oil Resistant, Self-Adhesive Edge, Water Resistant	170 °F, 180 °F, 190 °F, 200 °F	Pre-Printed	Adhesive, Permanent	20.83 mm	0.82 "	Rectangle	Symbol and Text	Assorted	English	Red	White	General
Wahl Temp-Plate® 101-4-066C	0.38 in	9.65 mm	Fuel Resistant, Grease Resistant, Oil Resistant, Self-Adhesive Edge, Water Resistant	65 °C, 93 °C, 121 °C, 148 °C	Pre-Printed	Adhesive, Permanent	20.83 mm	0.82 "	Rectangle	Symbol and Text	Assorted	English	Red	White	General
Wahl Temp-Plate® 101-4-132C	0.38 in	9.65 mm	Fuel Resistant, Grease Resistant, Oil Resistant, Self-Adhesive Edge, Water Resistant	132 °C, 137 °C, 148 °C	Pre-Printed	Adhesive, Permanent	20.83 mm	0.82 "	Rectangle	Symbol and Text	Assorted	English	Red	White	General
Wahl Temp-Plate® 101-4-094VC	0.38 in	9.65 mm	Fuel Resistant, Grease Resistant, Oil Resistant, Self-Adhesive Edge, Water Resistant	93 °C, 104 °C, 115 °C, 126 °C	Pre-Printed	Adhesive, Permanent	20.83 mm	0.82 "	Rectangle	Symbol and Text	Assorted	English	Red	White	General
Wahl Temp-Plate® 101-4-151F	0.38 in	9.65 mm	Fuel Resistant, Grease Resistant, Oil Resistant, Self-Adhesive Edge, Water Resistant	150 °F, 200 °F, 250 °F, 300 °F	Pre-Printed	Adhesive, Permanent	20.83 mm	0.82 "	Rectangle	Symbol and Text	Assorted	English	Red	White	General
Wahl Temp-Plate® 101-4-066VC	0.38 in	9.65 mm	Fuel Resistant, Grease Resistant, Oil Resistant, Self-Adhesive Edge, Water Resistant	65 °C, 93 °C, 121 °C, 148 °C	Pre-Printed	Adhesive, Permanent	20.83 mm	0.82 "	Rectangle	Symbol and Text	Assorted	English	Red	White	General
Wahl Temp-Plate® 101-4-390F	0.38 in	9.65 mm	Fuel Resistant, Grease Resistant, Oil Resistant, Self-Adhesive Edge, Water Resistant	390 °F, 400 °F, 410 °F, 420 °F	Pre-Printed	Adhesive, Permanent	20.83 mm	0.82 "	Rectangle	Symbol and Text	Assorted	English	Red	White	General

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 45.76
		10	$ 46.93

Description

General part information

101-4 Series

MINI FOUR-POSITION IC BATCH AND

Documents

Technical documentation and resources

No documents available
