EPK.00.250.NTN

Active

LEMO

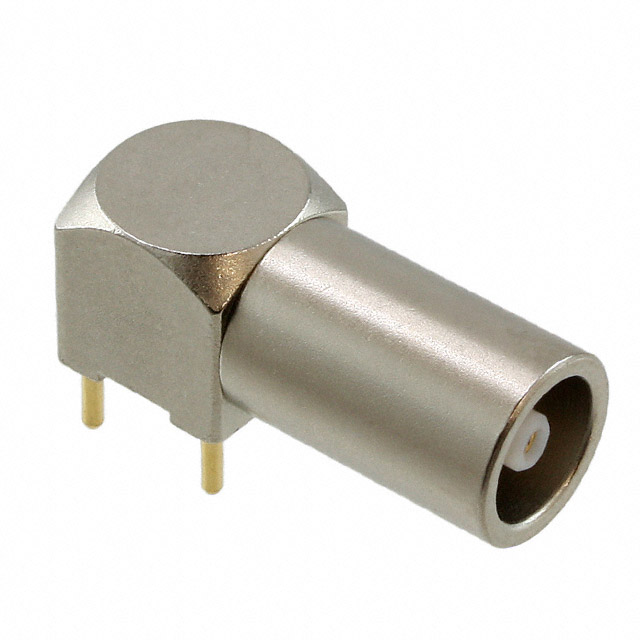

CONN NIMCAMAC RCPT R/A 50OHM PCB

Search across all available documentation for this part.

Active

LEMO

CONN NIMCAMAC RCPT R/A 50OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	EPK.00.250.NTN

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	NIM-CAMAC CD/N 549
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	5000
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	700 VDC

CONN NIMCAMAC RCPT R/A 50OHM PCB

Part	Body Finish	Voltage Rating	Mounting Type	Impedance	Fastening Type	Center Contact Plating	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Connector Type	Connector Style	Body Material	Center Contact Material	Mating Cycles	Shield Termination	Ingress Protection	Housing Color	Dielectric Material
LEMO EPK.00.250.NTN	Nickel	700 VDC	Through Hole, Right Angle	50 Ohms	Push-Pull	Gold	Solder	-55 °C	260 ░C	1	Female Socket, Receptacle	NIM-CAMAC CD/N 549	Brass	Bronze	5000	Solder	IP50	Silver	Polytetrafluoroethylene (PTFE)
