0002066122
ActiveMolex
CONN PIN SOLDER PCB GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

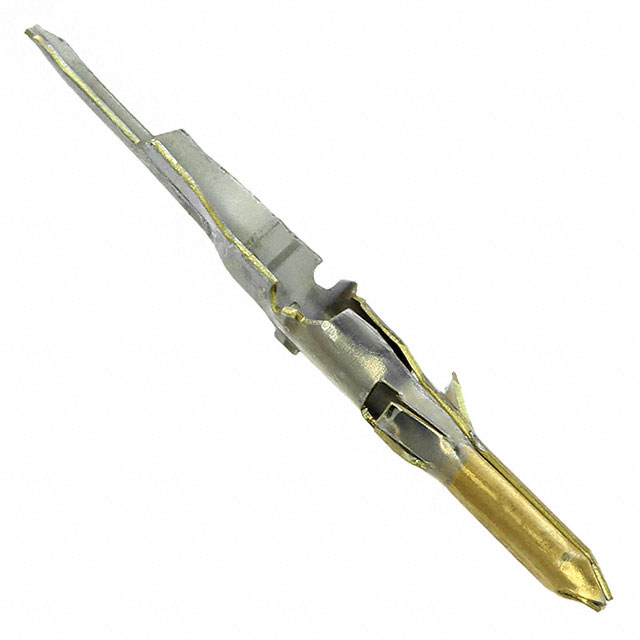

0002066122
ActiveMolex
CONN PIN SOLDER PCB GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0002066122 | 000206 Series |
|---|---|---|
| - | - | |
| Contact Finish | Gold | Tin, Gold |
| Contact Finish Thickness | 0.76 Ám | 0.38 - 1.27 µm |
| Contact Finish Thickness | 30 Áin | 15 - 50 µin |
| Contact Termination | Solder, PCB | Crimp, Solder, PCB |
| Pin or Socket | Pin | Socket, Pin |
| Type | Power | Power |
| Wire Gauge | - | 17.5 - 24 AWG |
| Wire Gauge | - | 24 - 30 AWG |
000206 Series
CONN SOCKET 24-30AWG TIN CRIMP
| Part | Contact Finish | Type | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Pin or Socket | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|
Molex 0002061131 | Tin | Power | 0.51 µm | 20 µin | Crimp | Socket | 24 AWG | 30 AWG |
Molex 0002065101 | Gold | Power | 0.76 Ám | 30 Áin | Crimp | Socket | 17.5 AWG | 24 AWG |
Molex 0002066105 | Gold | 1.27 µm | 50 µin | Crimp | Pin | 17.5 AWG | 24 AWG | |
Molex 0002066102 | Gold | Power | 0.76 Ám | 30 Áin | Crimp | Pin | 17.5 AWG | 24 AWG |
Molex 0002062101 | Tin | Power | 0.51 µm | 20 µin | Crimp | Pin | 17.5 AWG | 24 AWG |
Molex 0002061143 | ||||||||
Molex 0002066118 | Gold | 0.76 Ám | 30 Áin | Crimp | Pin | 17.5 AWG | 24 AWG | |
Molex 0002066143 | Gold | 0.76 Ám | 30 Áin | Crimp | Pin | 24 AWG | 30 AWG | |
Molex 0002065139 | Gold | 0.76 Ám | 30 Áin | Crimp | Socket | 24 AWG | 30 AWG | |
Molex 0002065147 | Gold | 0.76 Ám | 30 Áin | Crimp | Socket | 24 AWG | 30 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.10 | |
| 10 | $ 0.82 | |||
| 25 | $ 0.74 | |||
| 50 | $ 0.68 | |||
| 100 | $ 0.63 | |||
| 250 | $ 0.58 | |||
| 500 | $ 0.54 | |||
| 1000 | $ 0.51 | |||
| 2500 | $ 0.47 | |||
Description
General part information
000206 Series
Pin Contact Gold Solder, PCB Power
Documents
Technical documentation and resources
