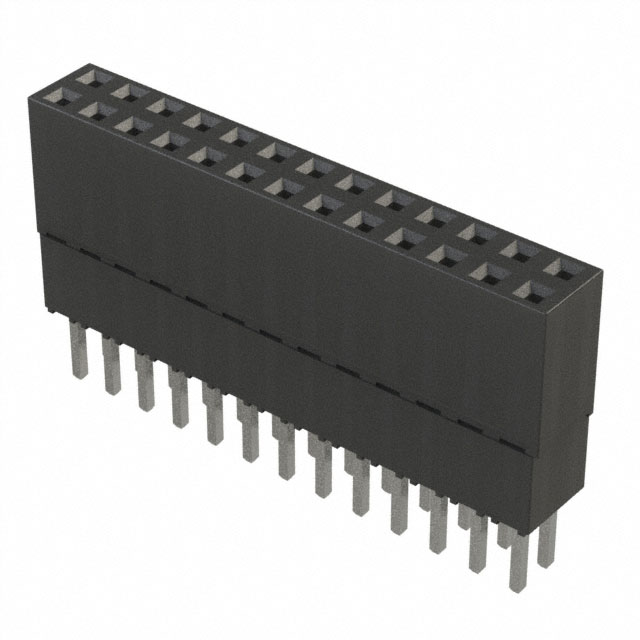

ESQ-113-23-T-D

Active

Samtec Inc.

CONN SOCKET 26POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsESQ Datasheet Datasheet +1

ESQ-113-23-T-D

Active

Samtec Inc.

CONN SOCKET 26POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsESQ Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESQ-113-23-T-D

Connector Type	Elevated Socket
Contact Finish - Post	Tin
Contact Length - Post	4.83 mm
Contact Length - Post	0.19 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	5.7 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	13.6 mm
Insulation Height	0.535 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	550 VAC

ESQ-106 Series

PC / 104 Connectors Elevated Socket Strip, 0.100" Pitch

...

Part	Mounting Type	Voltage Rating	Contact Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Finish - Post	Number of Positions	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Shape	Contact Length - Post	Contact Length - Post	Insulation Material	Termination	Fastening Type	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Current Rating (Amps)	Number of Rows	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. ESQ-113-23-T-D	Through Hole	550 VAC	Phosphor Bronze	Elevated Socket	105 ░C	-55 °C	UL94 V-0	Tin	26	0.1 in	2.54 mm	13.6 mm	0.535 in	All	Square	4.83 mm	0.19 in	Liquid Crystal Polymer (LCP)	Solder	Push-Pull	Black	2.54 mm	0.1 in	Forked	5.7 A	2
Samtec Inc. ESQ-124-12-T-S	Through Hole	550 VAC	Phosphor Bronze	Elevated Socket	105 ░C	-55 °C	UL94 V-0	Tin	24	0.1 in	2.54 mm	11.05 mm	0.435 in	All	Square	2.29 mm	0.09 "	Liquid Crystal Polymer (LCP)	Solder	Push-Pull	Black			Forked	5.7 A	1
Samtec Inc. ESQ-116-39-L-D	Through Hole	550 VAC	Phosphor Bronze	Elevated Socket	125 °C	-55 °C	UL94 V-0	Tin		0.1 in	2.54 mm	11.05 mm	0.435 in	All	Square	0.48 in		Liquid Crystal Polymer (LCP)	Solder	Push-Pull	Black	2.54 mm	0.1 in	Forked	5.7 A	2	12.19 mm	10 çin	0.25 çm	Gold
Samtec Inc. ESQ-103-33-G-D	Through Hole	550 VAC	Phosphor Bronze	Elevated Socket	125 °C	-55 °C	UL94 V-0	Gold	6	0.1 in	2.54 mm	16.13 mm	0.635 in	All	Square	2.29 mm	0.09 "	Liquid Crystal Polymer (LCP)	Solder	Push-Pull	Black	2.54 mm	0.1 in	Forked	5.7 A	2		20 µin	0.51 µm	Gold	3 µin	0.076 µm
Samtec Inc. ESQ-109-13-T-S	Through Hole	550 VAC	Phosphor Bronze	Elevated Socket	105 ░C	-55 °C	UL94 V-0	Tin	9	0.1 in	2.54 mm	11.05 mm	0.435 in	All	Square			Liquid Crystal Polymer (LCP)	Solder	Push-Pull	Black			Forked	5.7 A	1							0.29 "	7.37 mm
Samtec Inc. ESQ-114-12-G-S	Through Hole	550 VAC	Phosphor Bronze	Elevated Socket	125 °C	-55 °C	UL94 V-0	Gold	14	0.1 in	2.54 mm	11.05 mm	0.435 in	All	Square	2.29 mm	0.09 "	Liquid Crystal Polymer (LCP)	Solder	Push-Pull	Black			Forked	5.7 A	1		20 µin	0.51 µm	Gold	3 µin	0.076 µm
Samtec Inc. ESQ-105-23-T-D-LL	Through Hole	550 VAC	Phosphor Bronze	Elevated Socket	105 ░C	-55 °C	UL94 V-0	Tin	10	0.1 in	2.54 mm	13.6 mm	0.535 in	All	Square	4.83 mm	0.19 in	Liquid Crystal Polymer (LCP)	Kinked Pin Solder	Push-Pull	Black	2.54 mm	0.1 in	Forked	5.7 A	2
Samtec Inc. ESQ-118-44-T-S	Through Hole	550 VAC	Phosphor Bronze	Elevated Socket	105 ░C	-55 °C	UL94 V-0	Tin	18	0.1 in	2.54 mm	18.67 mm	0.735 "	All	Square	4.57 mm	0.18 in	Liquid Crystal Polymer (LCP)	Solder	Push-Pull	Black			Forked	5.7 A	1
Samtec Inc. ESQ-126-39-G-S	Through Hole	550 VAC	Phosphor Bronze	Elevated Socket	125 °C	-55 °C	UL94 V-0	Gold	26	0.1 in	2.54 mm	11.05 mm	0.435 in	All	Square	0.48 in		Liquid Crystal Polymer (LCP)	Solder	Push-Pull	Black			Forked	5.7 A	1	12.19 mm	20 µin	0.51 µm	Gold	3 µin	0.076 µm
Samtec Inc. ESQ-109-38-G-D	Through Hole	550 VAC	Phosphor Bronze	Elevated Socket	125 °C	-55 °C	UL94 V-0	Gold	18	0.1 in	2.54 mm	11.05 mm	0.435 in	All	Square			Liquid Crystal Polymer (LCP)	Solder	Push-Pull	Black	2.54 mm	0.1 in	Forked	5.7 A	2		20 µin	0.51 µm	Gold	3 µin	0.076 µm	0.29 "	7.37 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.13
		10	$ 4.70
		100	$ 3.64
		500	$ 3.08
		1000	$ 2.88

Description

General part information

ESQ-106 Series

PC / 104 Connectors Elevated Socket Strip, 0.100" Pitch
