788799-1

Active

TE Connectivity AMP Connectors

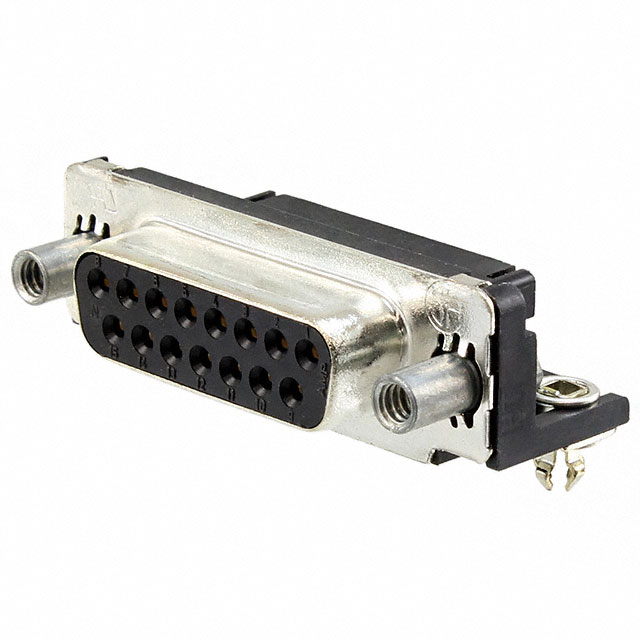

CONN D-SUB RCPT 15POS R/A SLDR

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-SUB RCPT 15POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	788799-1

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	6 A
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	125 VDC

CONN D-SUB RCPT 15POS R/A SLDR

Part	Connector Type	Color	Contact Material	Current Rating (Amps)	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Connector Style	Contact Type	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Termination	Backset Spacing	Backset Spacing	Voltage Rating	Number of Rows	Shell Size, Connector Layout	Mounting Type
TE Connectivity AMP Connectors 788799-1	Receptacle, Female Sockets	Black	Phosphor Bronze	6 A	15	0.76 Ám	30 Áin	Female Screwlock (4-40), Mating Side	D-Sub	Signal	Gold	105 ░C	-55 °C	UL94 V-0	Solder	8.08 mm	0.318 "	125 VDC	2	2	Through Hole, Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	520	$ 14.89

General part information

15 Position D-Sub Receptacle, Female Sockets Connector
