Description
General part information

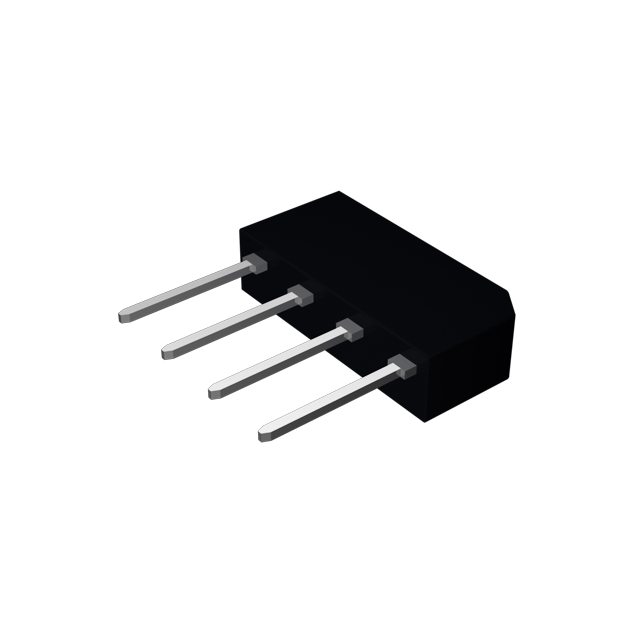

GBL2M
Bridge Rectifier Single Phase Standard 1 kV Through Hole GBL(2S)
Technical Specifications
Parameters and characteristics for this part
| Specification | GBL2M |
|---|---|
| Current - Average Rectified (Io) | 2 A |
| Current - Reverse Leakage | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | GBL, 4-SIP |
| Package Name | GBL(2S) |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) | 1 V, 1 V |
| Voltage - Peak Reverse (Max) | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
