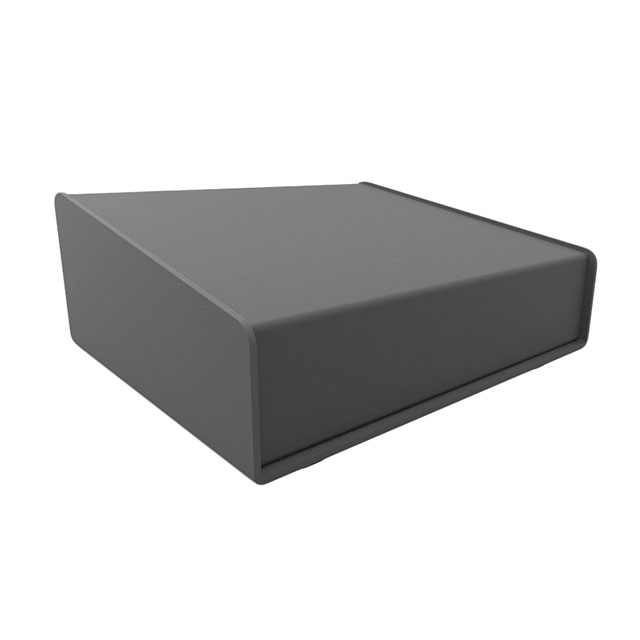

1456PH3BKBK

Active

Hammond Manufacturing

CONSOLE ALUM 14.18"L X 8.61"W

Deep-Dive with AI

Search across all available documentation for this part.

1456PH3BKBK

Active

Hammond Manufacturing

CONSOLE ALUM 14.18"L X 8.61"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1456PH3BKBK	1456 Series

Area (L x W)	-	76.2 - 149 in²
Area (L x W)	-	961 cm²
Area (L x W)	-	492 cm²
Area (L x W)	-	155 - 948 cm²
Area (L x W)	-	24 - 147 in²
Area (L x W)	-	38.4 - 235 in²
Area (L x W)	-	248 - 1516 cm²
Area (L x W)	-	787 cm²
Area (L x W)	-	122 in²
Color	Black	Black, Blue, White
Container Type	Console	Console
Design	Slanted Top	Slanted Top
Features	-	Slope, Walnut Side Panels
Features	-	10 - 30 °
Height [z]	81.53 mm	56.13 - 106.93 mm
Height [z]	3.21 in	2.21 - 101.6 in
Material	Metal, Aluminum	Metal, Aluminum, Wood
Size / Dimension	-	10.18 - 514.6 mm
Size / Dimension	-	258.57 - 266.19 mm
Size / Dimension	-	106.17 mm
Size / Dimension [x]	14.18 in	5.77 - 20.26 in
Size / Dimension [x]	360.17 mm	146.56 - 514.6 mm
Size / Dimension [y]	8.61 "	4.18 - 11.61 in
Size / Dimension [y]	218.69 mm	146.05 - 294.89 mm
Thickness	2.06 mm	2.06 mm
Thickness	0.081 in	0.081 in

1456 Series

CONSOLE ALUM 14.18"L X 10.48"W

Part	Design	Height [z]	Height [z]	Area (L x W) [x]	Area (L x W) [y]	Material	Features	Features	Container Type	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Thickness	Thickness	Area (L x W) [x]	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W)	Area (L x W)	Area (L x W) [custom]	Area (L x W) [custom]	Size / Dimension
Hammond Manufacturing 1456PK4BKBU	Slanted Top	106.93 mm	4.21 in	149 in²	961 cm²	Aluminum, Metal	Slope	30 °	Console	Black, Blue	266.19 mm	14.18 in	10.48 in	360.17 mm	2.06 mm	0.081 in
Hammond Manufacturing 1456KG4BKBU	Slanted Top	106.93 mm	4.21 in	76.2 in²		Aluminum, Metal	Slope	30 °	Console	Black, Blue	189.99 mm	10.18 in	7.48 in	258.57 mm	2.06 mm	0.081 in	492 cm²
Hammond Manufacturing 1456RH3BKBU	Slanted Top	81.53 mm	3.21 in			Aluminum, Metal	Slope	15 °	Console	Black, Blue	218.69 mm	17.12 "	8.61 "	434.85 mm	2.06 mm	0.081 in		948 cm²	147 in²
Hammond Manufacturing 1456RK4WHBU	Slanted Top	106.93 mm	4.21 in			Aluminum, Metal	Slope	30 °	Console	Blue, White	266.19 mm	17.12 "	10.48 in	434.85 mm	2.06 mm	0.081 in				179 in²	1155 cm²
Hammond Manufacturing 1456RL3WHBU	Slanted Top	81.53 mm	3.21 in			Aluminum, Metal	Slope	15 °	Console	Blue, White	294.89 mm	17.12 "	11.61 in	434.85 mm	2.06 mm	0.081 in				199 in˛	1284 cm˛
Hammond Manufacturing 1456KL3BKBU	Slanted Top	81.53 mm	3.21 in			Aluminum, Metal	Slope	15 °	Console	Black, Blue	258.57 mm	11.61 "	10.18 "	294.89 mm	2.06 mm	0.081 in				118 in˛	761 cm˛
Hammond Manufacturing 1456PH3BKBU	Slanted Top	81.53 mm	3.21 in			Aluminum, Metal	Slope	15 °	Console	Black, Blue	218.69 mm	14.18 in	8.61 "	360.17 mm	2.06 mm	0.081 in						787 cm²	122 in²
Hammond Manufacturing 1456PH3WHBU	Slanted Top	81.53 mm	3.21 in			Aluminum, Metal	Slope	15 °	Console	Blue, White	218.69 mm	14.18 in	8.61 "	360.17 mm	2.06 mm	0.081 in						787 cm²	122 in²
Hammond Manufacturing 1456FH3WHBU	Slanted Top	81.53 mm	3.21 in			Aluminum, Metal	Slope	15 °	Console	Blue, White		8.61 in	6.68 "		2.06 mm	0.081 in				57.5 in²	371 cm²			169.67 mm, 218.69 mm
Hammond Manufacturing 1456RL3BKBU	Slanted Top	81.53 mm	3.21 in			Aluminum, Metal	Slope	15 °	Console	Black, Blue	294.89 mm	17.12 "	11.61 in	434.85 mm	2.06 mm	0.081 in				199 in˛	1284 cm˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 50.73
		5	$ 43.37
		10	$ 40.53
		25	$ 37.07
		50	$ 36.76

Description

General part information

1456 Series

Console Metal, Aluminum Black Slanted Top 14.180" L x 8.610" W (360.17mm x 218.69mm) X 3.210" (81.53mm)
