83348E 009500

Active

Belden Inc.

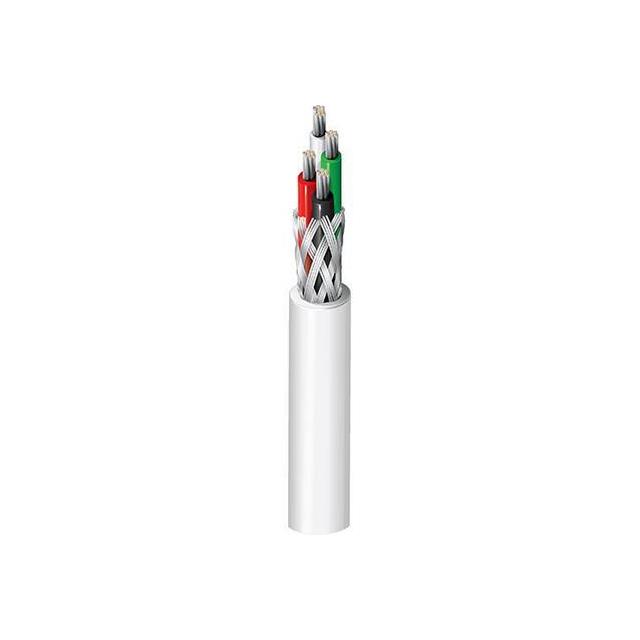

CABLE 4CON 24AWG WHT SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4CON 24AWG WHT SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83348E 009500

Cable Type	Multi-Conductor
Conductor Insulation	Tetrafluoroethylene (TFE)
Conductor Material	Copper, Silver Coated
Jacket (Insulation) Diameter	0.149 "
Jacket (Insulation) Diameter	3.78 mm
Jacket (Insulation) Material	Tetrafluoroethylene (TFE)
Jacket (Insulation) Thickness	0.279 mm
Jacket (Insulation) Thickness	0.011 in
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Shield Coverage	85 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
Voltage	600 V
Wire Gauge	24 AWG

Part	Cable Type	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Conductor Insulation	Jacket (Insulation) Material	Shield Type	Shield Coverage	Length [x]	Length [x]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Number of Conductors	Shield Material	Voltage	Operating Temperature [Min]	Operating Temperature [Max]
Belden Inc. 83348E 009500	Multi-Conductor	0.149 "	3.78 mm	Tetrafluoroethylene (TFE)	Tetrafluoroethylene (TFE)	Braid	85 %	500 '	152.4 m	24 AWG	0.279 mm	0.011 in	Copper Silver Coated	4	Copper Silver Coated	600 V	-65 ░C	200 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 12.79

General part information

4 Conductor Multi-Conductor Cable White 24 AWG Braid 500.0' (152.4m)
