56.OA01.2431C
ActiveAltech Corporation

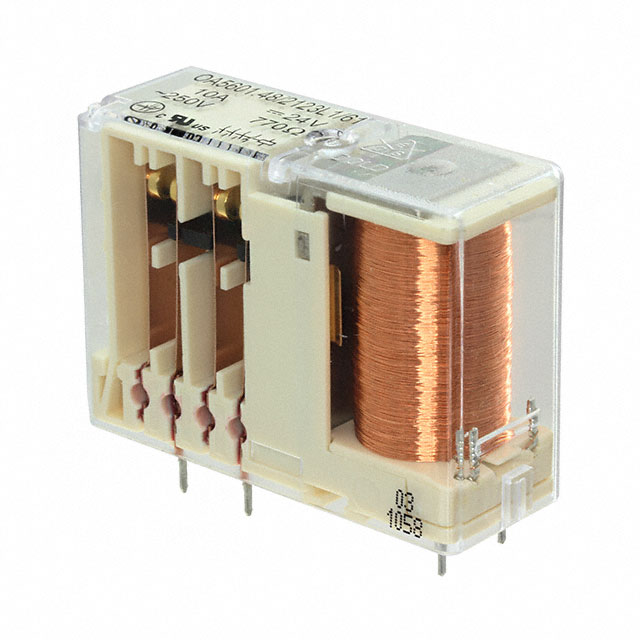

RELAY SAFETY 4PST 10A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
56.OA01.2431C
ActiveAltech Corporation
RELAY SAFETY 4PST 10A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 56.OA01.2431C | 56.OA01 Series |
|---|---|---|
| - | - | |
| Coil Current | 31 mA | 31 mA |
| Coil Resistance | 770 Ohms | 770 Ohms |
| Coil Voltage | 24 VDC | 24 VDC |
| Contact Form | 4PST-3NO/1NC (3 Form A, 1 Form B) | 4PST-3NO/1NC (3 Form A, 1 Form B) |
| Contact Material | Gold (Au), Silver Tin Oxide (AgSnO) | Gold (Au), Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 10 A | 10 A |
| Mounting Type | Through Hole | Through Hole |
| Must Operate Voltage | 16.8 VDC | 16.8 VDC |
| Operate Time | 27 ms | 27 ms |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Release Time | 5 ms | 5 ms |
| Switching Voltage [Max] | 250 VDC, 400 VAC | 250 - 400 VDC |
| Termination Style | PC Pin | PC Pin |
56.OA01 Series
OA560124V 3NO/1NC AGNI10+2UMAU I
| Part | Contact Form | Contact Rating (Current) | Coil Resistance | Coil Voltage | Mounting Type | Termination Style | Release Time | Must Operate Voltage | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Coil Current | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Altech Corporation 56.OA01.2431N | ||||||||||||||
Altech Corporation 56.OA01.0622N | ||||||||||||||
Altech Corporation 56.OA01.2431C | 4PST-3NO/1NC (3 Form A, 1 Form B) | 10 A | 770 Ohms | 24 VDC | Through Hole | PC Pin | 5 ms | 16.8 VDC | 27 ms | 85 °C | -40 °C | Gold (Au), Silver Tin Oxide (AgSnO) | 31 mA | 250 VDC, 400 VAC |
Altech Corporation 56.OA01.1131C | ||||||||||||||
Altech Corporation 56.OA01.2422S | ||||||||||||||
Altech Corporation 56.OA01.1122S | ||||||||||||||
Altech Corporation 56.OA01.1231N | ||||||||||||||
Altech Corporation 56.OA01.1122N | ||||||||||||||
Altech Corporation 56.OA01.1222C | ||||||||||||||
Altech Corporation 56.OA01.1122C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 68.49 | |
| 20 | $ 64.88 | |||
| 40 | $ 57.67 | |||
| 100 | $ 54.07 | |||
Description
General part information
56.OA01 Series
RELAY SAFETY 4PST 10A 24V
