O5H500
Activeifm efector, inc.

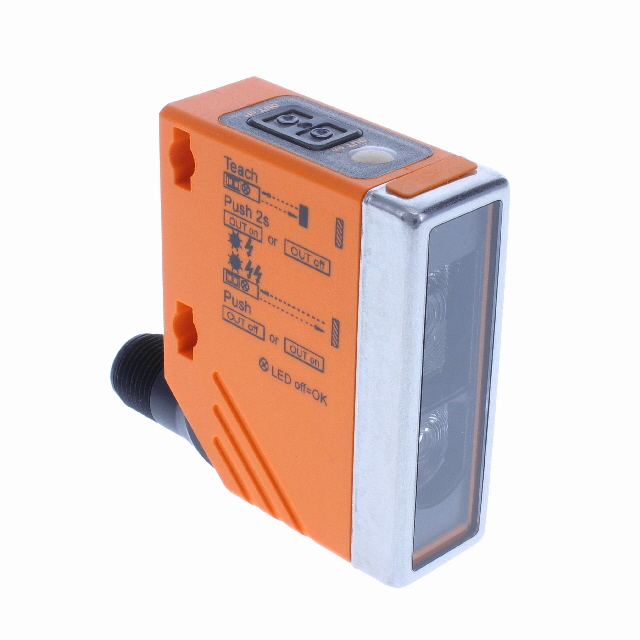

DIFFUSE REFLECTION SENSOR; RED L
O5H500
Activeifm efector, inc.
DIFFUSE REFLECTION SENSOR; RED L
Description
General part information
O5H500
Diffuse, Background Suppression Optical Sensor 1.969" ~ 70.866" (50mm ~ 1.8m) PNP - Dark-ON/Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | O5H500 |
|---|---|
| Connection Method | Connector, M12 |
| Ingress Protection | IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 624 nm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | Light-ON, PNP - Dark-ON |
| Sensing Distance Maximum | 70.866 " |
| Sensing Distance Minimum | 1.969 " |
| Sensing Method | Background Suppression, Diffuse |
| Voltage - Supply (Maximum) | 36 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
