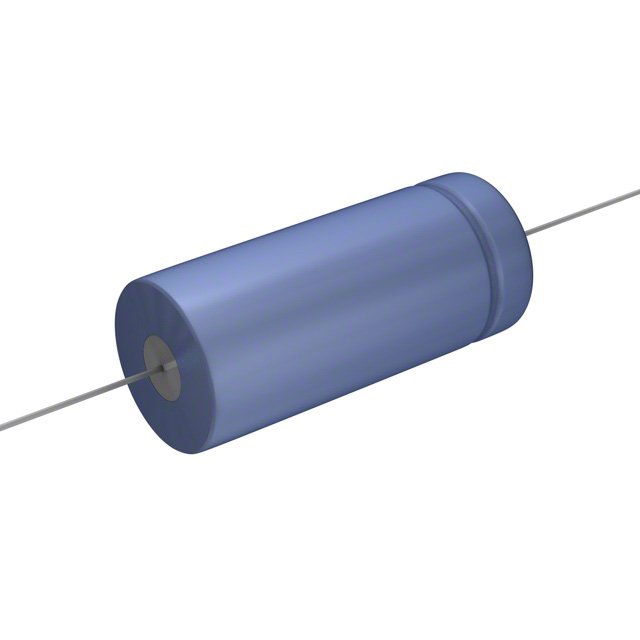

WBR150-150A
ObsoleteCornell Dubilier Knowles
CAP ALUM 150UF 150V AXIAL TH
WBR150-150A
ObsoleteCornell Dubilier Knowles
CAP ALUM 150UF 150V AXIAL TH
Description
General part information
WBR150-150A
150 µF 150 V Aluminum Electrolytic Capacitors Axial, Can 2.05Ohm @ 120Hz 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | WBR150-150A |
|---|---|
| Applications | General Purpose |
| Capacitance | 150 µF |
| ESR (Equivalent Series Resistance) | 2.05 Ohm |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 276 mA, 230 mA |
| Size / Dimension Diameter | 0.74 in |
| Size / Dimension Length | 1.69 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 100 % |
| Voltage - Rated | 150 VAC |
