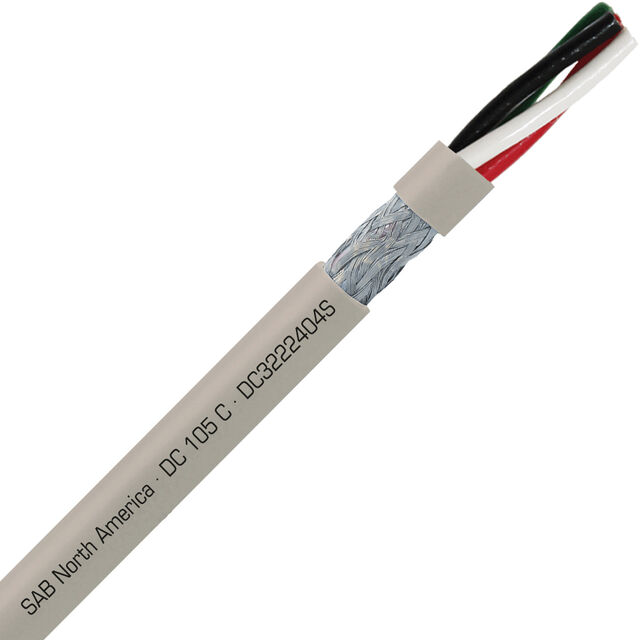

DC3222404S
ActiveSAB North America
CABLE 4COND 24AWG GRY SHLD 1=1FT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DC3222404S
ActiveSAB North America
CABLE 4COND 24AWG GRY SHLD 1=1FT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DC3222404S | DC3222404 Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor, Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG | 32 AWG |
| Conductor Strand [custom] | 7 | 7 |
| Features | Drain Wire | Drain Wire, Oil Resistant |
| Jacket (Insulation) Diameter [diameter] | 0.209 in | 0.209 - 0.292 in |
| Jacket (Insulation) Diameter [diameter] | 5.31 mm | 5.31 - 7.42 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray | Gray |
| Length | Enter Number of Feet in Order Quantity | Enter Number of Feet in Order Quantity |
| Number of Conductors | 4 | 4 - 8 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Shield Material | Copper, Tinned | Copper, Tinned |
| Shield Type | Foil, Braid | Foil, Braid |
| Voltage | 300 V | 300 V |
| Wire Gauge | 24 AWG | 24 AWG |
DC3222404 Series
CABLE 4COND 24AWG GRY SHLD 1=1FT
| Part | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Shield Type | Number of Conductors | Features | Length | Jacket Color | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Shield Material | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SAB North America DC3222404S | Copper, Tinned | 0.209 in | 5.31 mm | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 32 AWG | 7 | 300 V | Braid, Foil | 4 | Drain Wire | Enter Number of Feet in Order Quantity | Gray | Poly-Vinyl Chloride (PVC) | -25 °C | 105 ░C | Copper, Tinned | 24 AWG |
SAB North America DC3222404TP | Copper, Tinned | 0.292 in | 7.42 mm | Poly-Vinyl Chloride (PVC) | Multi-Pair | 32 AWG | 7 | 300 V | Braid, Foil | 8 | Oil Resistant | Enter Number of Feet in Order Quantity | Gray | Poly-Vinyl Chloride (PVC) | -25 °C | 105 ░C | Copper, Tinned | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 2.89 | |
| 25 | $ 2.01 | |||
| 100 | $ 1.92 | |||
| 250 | $ 1.84 | |||
| 500 | $ 1.74 | |||
| 1000 | $ 1.66 | |||
Description
General part information
DC3222404 Series
4 Conductor Multi-Conductor Cable Gray 24 AWG Foil, Braid Enter Number of Feet in Order Quantity
