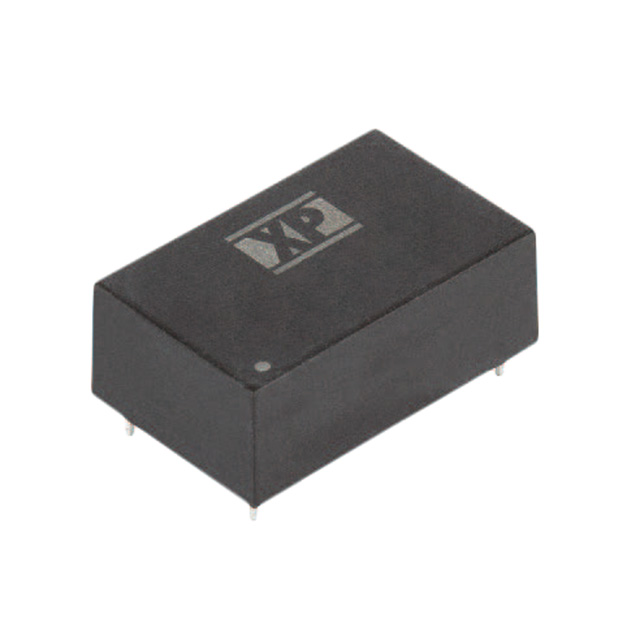

RDE03110S12
ActiveXP POWER
DC DC CONVERTER 12V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RDE03110S12
ActiveXP POWER
DC DC CONVERTER 12V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RDE03110S12 |
|---|---|
| Applications | Railway |
| Current - Output (Max) [Max] | 250 mA |
| Efficiency | 84 % |
| Features | UVLO, OCP, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module, 7 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [z] | 11.9 mm |
| Size / Dimension [z] | 0.47 " |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 160 V |
| Voltage - Input (Min) [Min] | 40 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 36.07 | |
| 5 | $ 34.99 | |||
| 10 | $ 33.91 | |||
| 25 | $ 32.46 | |||
| 100 | $ 30.30 | |||
Description
General part information
RDE03110S12
Isolated Module DC DC Converter 1 Output 12V 250mA 40V - 160V Input
