General part information
A24001-012

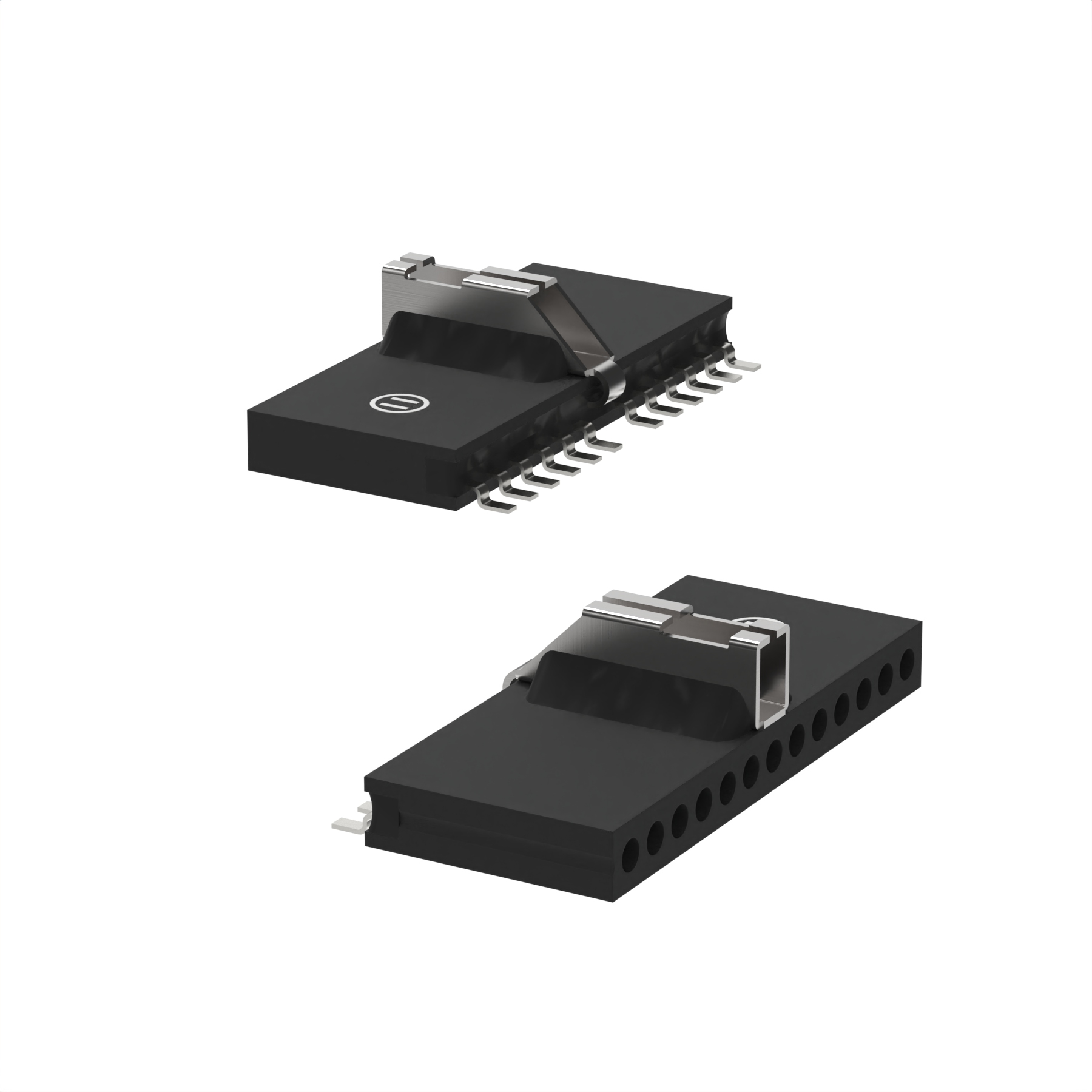

Connector Header Surface Mount, Right Angle 12 position 0.050" (1.27mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | A24001-012 |
|---|---|
| Connector Type | Plug, Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead, Solder Plated |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating | 3 A |
| Current Rating (Per Contact) | 3 A |
| Fastening Type | Latch Holder |
| Insulation Color | Black |
| Insulation Height | 0.075 in |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.05 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
