ABCM-60-10.000MHZ-BC-FK
ActiveAbracon LLC
XTAL OSC OCXO 10MHZ CMOS TH
ABCM-60-10.000MHZ-BC-FK
ActiveAbracon LLC
XTAL OSC OCXO 10MHZ CMOS TH
Description
General part information
ABCM-60-10.000MHZ-BC-FK

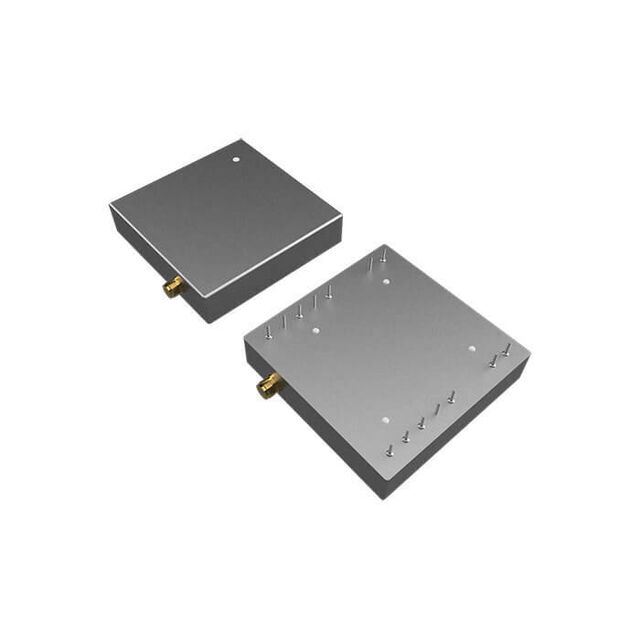

10 MHz OCXO CMOS Oscillator 5V Module
Technical Specifications
Parameters and characteristics for this part
| Specification | ABCM-60-10.000MHZ-BC-FK |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 600 mA |
| Frequency | 10 MHz |
| Frequency Stability | 0.2 ppb |
| Height - Seated (Max) | 0.532 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | Module |
| Size / Dimension Length | 2.362 in |
| Size / Dimension Width | 2.362 in |
| Type | OCXO |
| Voltage - Supply | 5 VDC |
