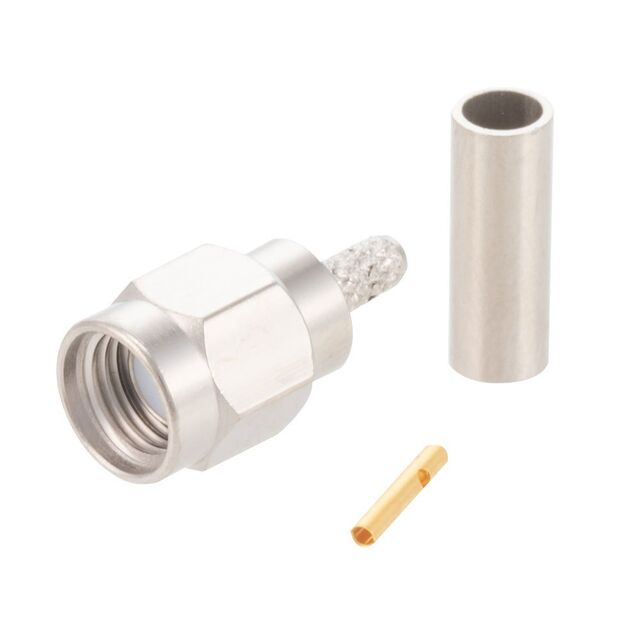

FMCN1883
ActiveFairview Microwave
CONN PLUG CRIMP/SOLDER SMA
FMCN1883
ActiveFairview Microwave
CONN PLUG CRIMP/SOLDER SMA
Description
General part information
FMCN1883
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN1883 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 316DS, RG-188DS |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
