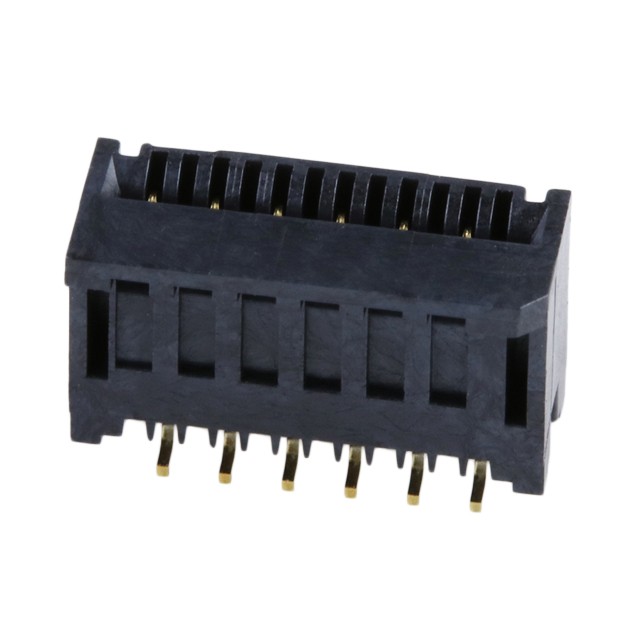

Specification	0781191220

Cable End Type	Tapered
Connector/Contact Type	Contacts, 1 Sided, Vertical
Contact Finish	Gold
Contact Finish Thickness	3.94 µin
Contact Material	Phosphor Bronze
Current Rating	0.5 A
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC, FPC
Height Above Board	0.161 in
Housing Color	Black
Housing Material	Glass Filled, LCP, Liquid Crystal Polymer
Material Flammability Rating	UL94 V-0
Mating Cycles	10 cycles
Mounting Type	Surface Mount
Number of Positions	12
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pitch	0.02 in
Termination	Solder
Voltage Rating	50 V

078119 Series

Part	Flat Flex Type	FFC, FCB Thickness	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Termination	Number of Positions	Height Above Board	Material Flammability Rating	Pitch	Contact Material	Cable End Type	Connector/Contact Type	Contact Finish	Voltage Rating	Housing Material	Contact Finish Thickness	Housing Color	Current Rating	Mating Cycles
Molex 0781191268	FFC FPC	0.3 mm	Surface Mount	-40 °C	85 °C	Solder	26	0.161 in	UL94 V-0	0.02 in	Copper Alloy	Tapered	1 Sided Contacts Vertical	Gold	50 V	Glass Filled Nylon 4/6 PA46 Polyamide	3.94 µin	Natural	0.5 A	20 cycles
Molex 0781191128	FFC FPC	0.3 mm	Surface Mount	-40 °C	85 °C	Solder	12	0.161 in	UL94 V-0	0.02 in	Copper Alloy	Tapered	1 Sided Contacts Vertical	Gold	50 V	Glass Filled Nylon 4/6 PA46 Polyamide	3.94 µin	Natural	0.5 A	20 cycles
Molex 0781191199	FFC FPC	0.3 mm	Surface Mount	-40 °C	85 °C	Solder	19	0.161 in	UL94 V-0	0.02 in	Copper Alloy	Tapered	1 Sided Contacts Vertical	Tin Bismuth	50 V	Glass Filled Nylon 4/6 PA46 Polyamide	39.4 Ąin	Natural	0.5 A	20 cycles
Molex 0781192620	FFC FPC	0.3 mm	Surface Mount	-40 °C	85 °C	Solder	26	0.161 in	UL94 V-0	0.02 in	Phosphor Bronze	Tapered	1 Sided Contacts Vertical	Gold	50 V	Glass Filled LCP Liquid Crystal Polymer	3.94 µin	Black	0.5 A	10 cycles
Molex 0781191239	FFC FPC	0.3 mm	Surface Mount	-40 °C	85 °C	Solder	23	0.161 in	UL94 V-0	0.02 in	Copper Alloy	Tapered	1 Sided Contacts Vertical	Tin Bismuth	50 V	Glass Filled Nylon 4/6 PA46 Polyamide	39.4 Ąin	Natural	0.5 A	20 cycles
Molex 0781191248	FFC FPC	0.3 mm	Surface Mount	-40 °C	85 °C	Solder	24 pos	0.161 in	UL94 V-0	0.02 in	Copper Alloy	Tapered	1 Sided Contacts Vertical	Gold	50 V	Glass Filled Nylon 4/6 PA46 Polyamide	3.94 µin	Natural	0.5 A	20 cycles
Molex 0781191258	FFC FPC	0.3 mm	Surface Mount	-40 °C	85 °C	Solder	25	0.161 in	UL94 V-0	0.02 in	Copper Alloy	Tapered	1 Sided Contacts Vertical	Gold	50 V	Glass Filled Nylon 4/6 PA46 Polyamide	3.94 µin	Natural	0.5 A	20 cycles
Molex 0781191088	FFC FPC	0.3 mm	Surface Mount	-40 °C	85 °C	Solder	8	0.161 in	UL94 V-0	0.02 in	Copper Alloy	Tapered	1 Sided Contacts Vertical	Gold	50 V	Glass Filled Nylon 4/6 PA46 Polyamide	3.94 µin	Natural	0.5 A	20 cycles
Molex 0781191189	FFC FPC	0.3 mm	Surface Mount	-40 °C	85 °C	Solder	18	0.161 in	UL94 V-0	0.02 in	Copper Alloy	Tapered	1 Sided Contacts Vertical	Tin Bismuth	50 V	Glass Filled Nylon 4/6 PA46 Polyamide	39.4 Ąin	Natural	0.5 A	20 cycles
Molex 0781191228	FFC FPC	0.3 mm	Surface Mount	-40 °C	85 °C	Solder	22	0.161 in	UL94 V-0	0.02 in	Copper Alloy	Tapered	1 Sided Contacts Vertical	Gold	50 V	Glass Filled Nylon 4/6 PA46 Polyamide	3.94 µin	Natural	0.5 A	20 cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

0781191220 | Datasheet
