CP30220M3B
ActiveCLIFF Electronic Components Ltd
FT BLACK METAL CAT5E RJ45 M3
CP30220M3B
ActiveCLIFF Electronic Components Ltd
FT BLACK METAL CAT5E RJ45 M3
Description
General part information
CP30220M3B

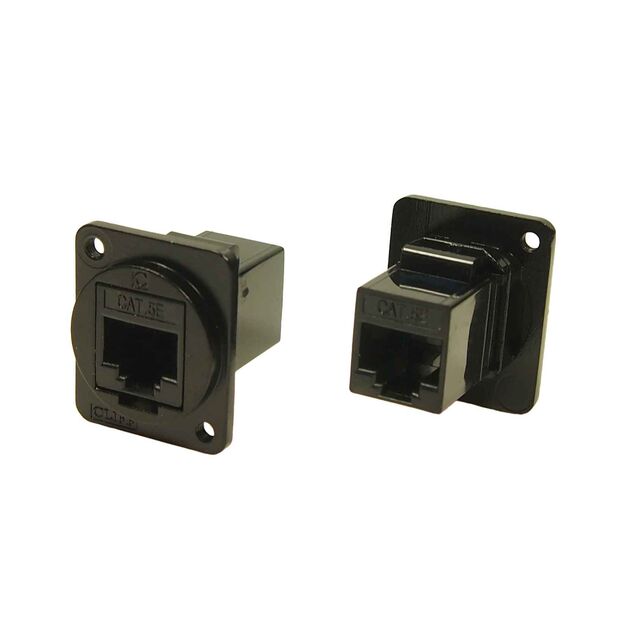

Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat5e Unshielded
Technical Specifications
Parameters and characteristics for this part
| Specification | CP30220M3B |
|---|---|
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Convert From (Adapter End) | 8p8c (RJ45), Jack |
| Convert To (Adapter End) | Jack, 8p8c (RJ45) |
| Housing Material | ABS, Acrylonitrile Butadiene Styrene |
| Mounting Feature | Flange |
| Mounting Type | Flange (2 Hole), Panel Mount |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Ratings | Cat5e |
| Shielding | Unshielded |
| Type | Coupler |
