P0250.102NL
ActivePulse Electronics
FIXED IND 1UH 8.6A 9 MOHM SMD
P0250.102NL
ActivePulse Electronics
FIXED IND 1UH 8.6A 9 MOHM SMD
Description
General part information
P0250.102NL

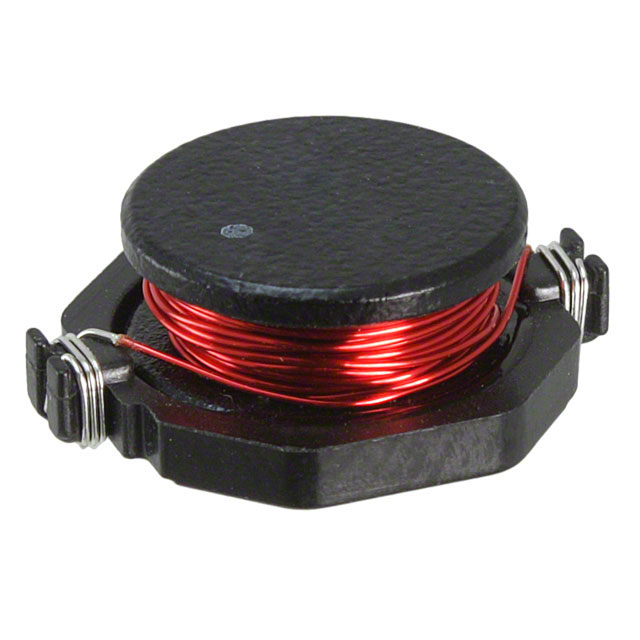

1 µH Unshielded Wirewound Inductor 8.6 A 9mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | P0250.102NL |
|---|---|
| Current - Saturation (Isat) | 20 A |
| Current Rating | 8.6 A |
| DC Resistance (DCR) (Max) | 9 mOhm |
| Height - Seated (Max) | 0.29 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.733 in |
| Size / Dimension Width | 0.596 in |
| Tolerance | 15 % |
| Type | Wirewound |
