APSDM032GM4AN-2BTMN
ObsoleteApacer Memory America
SSD 32GB MSATA MLC SATA III 3.3V
APSDM032GM4AN-2BTMN
ObsoleteApacer Memory America
SSD 32GB MSATA MLC SATA III 3.3V
Description
General part information
APSDM032GM4AN-2BTMN

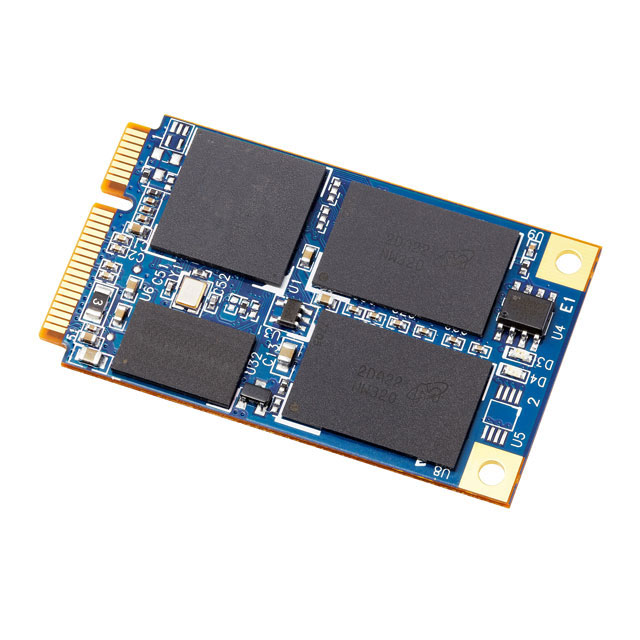

Solid State Drive (SSD) FLASH - NAND (MLC) 32GB SATA III mSATA 3.3V
Technical Specifications
Parameters and characteristics for this part
| Specification | APSDM032GM4AN-2BTMN |
|---|---|
| Current - Max | 340 mA |
| Form Factor | mSATA |
| Memory Size | 256 Gbit |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (MLC) |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Size / Dimension Height | 3.8 mm |
| Size / Dimension Length | 2 in |
| Size / Dimension Width | 29.85 mm |
| Speed - Read | 380 MB/s |
| Speed - Write | 80 MB/s |
| Type | SATA III |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
