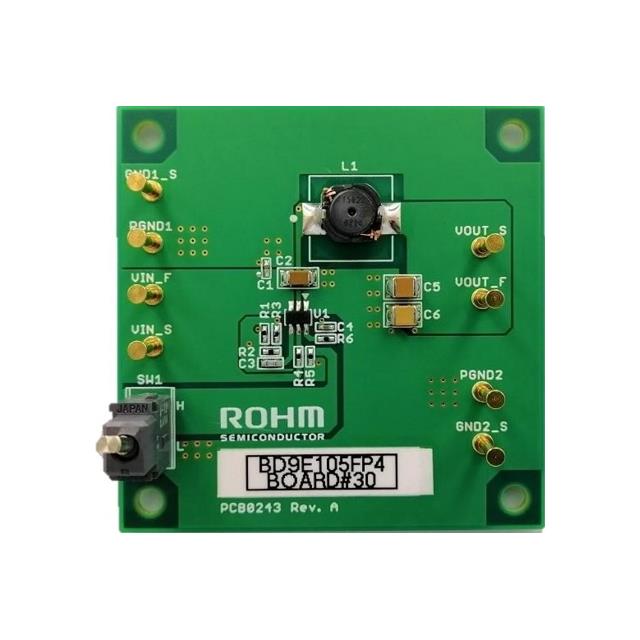

BD9E105FP4-EVK-001
ActiveRohm Semiconductor
EVAL BOARD, SYN BUCK DC-DC CONVERTER ROHS COMPLIANT: YES
BD9E105FP4-EVK-001
ActiveRohm Semiconductor
EVAL BOARD, SYN BUCK DC-DC CONVERTER ROHS COMPLIANT: YES
Description
General part information
BD9E105FP4-EVK-001
BD9E105 - 1 Non-Isolated Output DC/DC, Step Down Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | BD9E105FP4-EVK-001 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 1 A |
| Frequency - Switching | 500 kHz |
| Main Purpose | DC/DC, Step Down |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | BD9E105 |
| Voltage - Input (Maximum) | 24 VAC |
| Voltage - Input (Minimum) | 12 V |
| Voltage - Output | 5 VDC |
