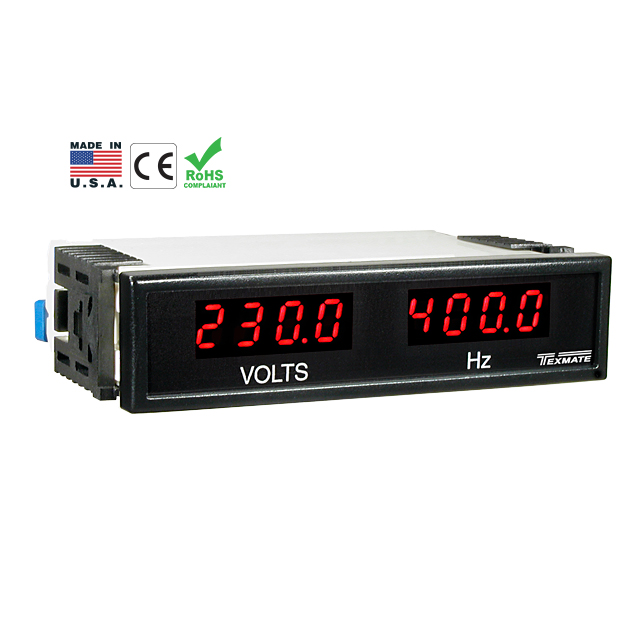

DD-40VHZ

Active

Texmate

ACV & HZ DUAL 4 DIGIT DISPLAY 00

Search across all available documentation for this part.

Active

Texmate

ACV & HZ DUAL 4 DIGIT DISPLAY 00

Technical Specifications

Parameters and characteristics for this part

ACV & HZ DUAL 4 DIGIT DISPLAY 00

Part	Type	Display Type	Operating Temperature [Max]	Operating Temperature [Min]	Measuring Range [Max]	Measuring Range [Min]	Termination Style	Measuring Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Display Characters - Height	Display Characters - Height	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Characters Per Row
Texmate DD-40VHZ	Frequency Meter, Voltmeter	LED - Red Characters	60 °C	0 °C	350 VAC, 450 Hz	30 VAC, 200 Hz	Screw Terminal	Frequency, Voltage	96 mm	24 mm	7.62 mm	0.3 in	265 VAC, 380 VDC	85 VAC, 90 VDC	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 422.00

General part information

Voltmeter, Frequency Meter LED - Red Characters Display Panel Mount
