1054366
ActivePhoenix Contact
CIRCULAR METRIC CONNECTORS M12 Y-PLUG CONNECT PIN 1 BRIDGE TO 2/4
1054366
ActivePhoenix Contact
CIRCULAR METRIC CONNECTORS M12 Y-PLUG CONNECT PIN 1 BRIDGE TO 2/4
Description
General part information
1054366

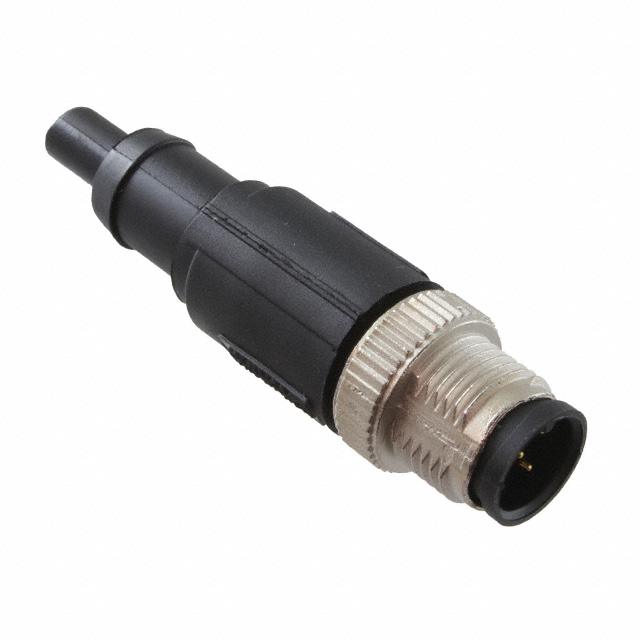

5 Position Circular Connector Receptacle, Male Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | 1054366 |
|---|---|
| Color | Black, Silver |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Threaded |
| Features | Backshell |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | A |
| Shell Size - Insert | M12-5 |
| Shielding | Shielded |
