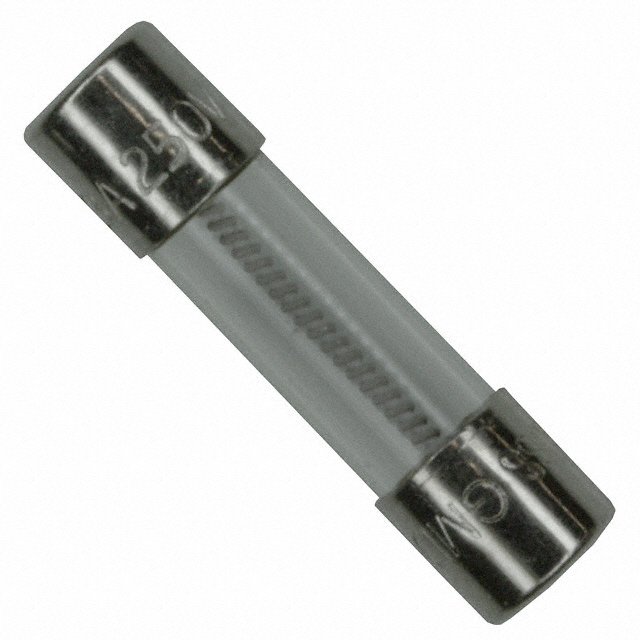

BK/GMD-3A
ObsoleteEaton - Electronics Division
FUSE GLASS 3A 250VAC 5X20MM
BK/GMD-3A
ObsoleteEaton - Electronics Division
FUSE GLASS 3A 250VAC 5X20MM
Description
General part information
BK/GMD-3A
3 A 250 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm
Technical Specifications
Parameters and characteristics for this part
| Specification | BK/GMD-3A |
|---|---|
| Approval Agency | UL, CSA |
| Breaking Capacity | 100 A |
| Current Rating | 3 A |
| Fuse Type | Cartridge, Glass |
| Melting I²t | 145 |
| Mounting Type | Requires Holder |
| Package / Case | 5mm x 20mm |
| Package Diameter | 5 mm, 20 mm |
| Package Height | 0 mm |
| Package Length | 5 mm |
| Package Width | 20 mm |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.205 in |
| Size / Dimension Length | 0.787 in |
| Voltage Rating - AC | 250 V |
