Description
General part information

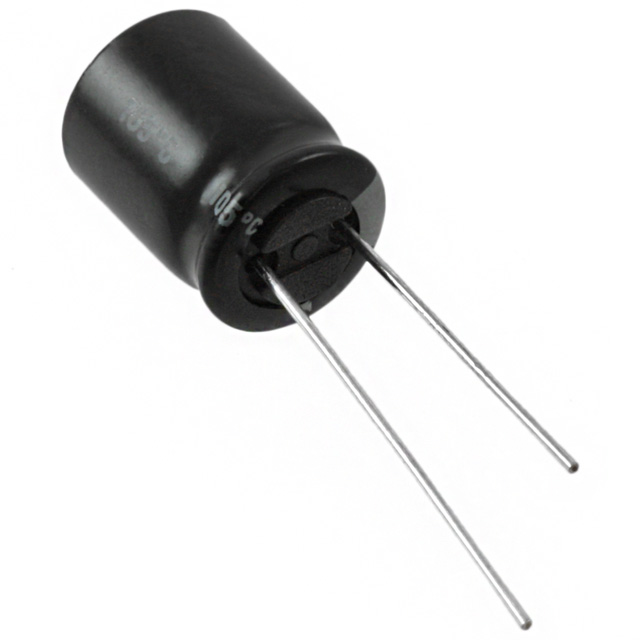

63ZL82MEFC10X12.5
82 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 63ZL82MEFC10X12.5 |
|---|---|
| Applications | General Purpose |
| Capacitance | 82 µF |
| Height - Seated (Max) | 0.551 in |
| Impedance | 150 mOhms |
| Lead Spacing | 0.197 in |
| Lifetime | 4000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 342.5 mA |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 63 V |
