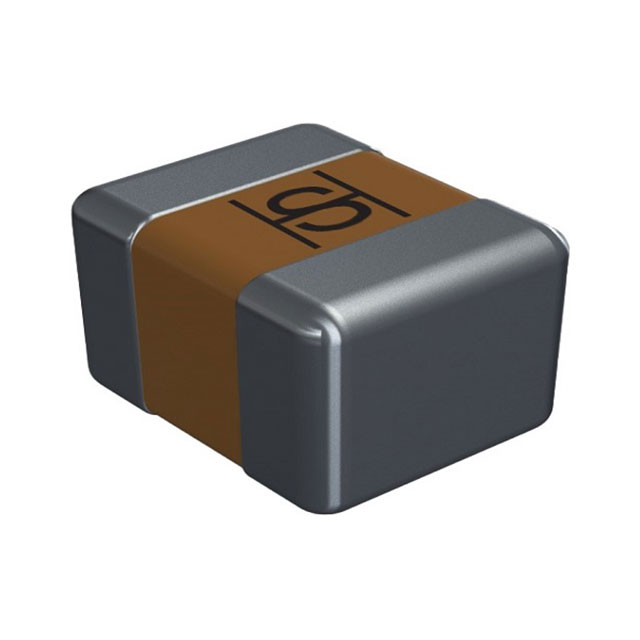

SCC2211X471K502TG
ActiveHoly Stone Enterprise Co., Ltd.
CAP CER 470PF 250V X7R 2211
SCC2211X471K502TG
ActiveHoly Stone Enterprise Co., Ltd.
CAP CER 470PF 250V X7R 2211
Description
General part information
SCC2211X471K502TG
470 pF ±10% 250V Ceramic Capacitor X7R 2211 (5728 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | SCC2211X471K502TG |
|---|---|
| Applications | Safety |
| Capacitance | 470 pF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2211 (5728 Metric) |
| Ratings | Y2, X1 |
| Size / Dimension Length | 0.224 in |
| Size / Dimension Width | 0.11 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.224 in |
| Thickness (Max) Length | 0.224 in |
| Thickness (Max) Width | 0.11 in |
| Tolerance | 10 % |
| Voltage - Rated | 250 V |
