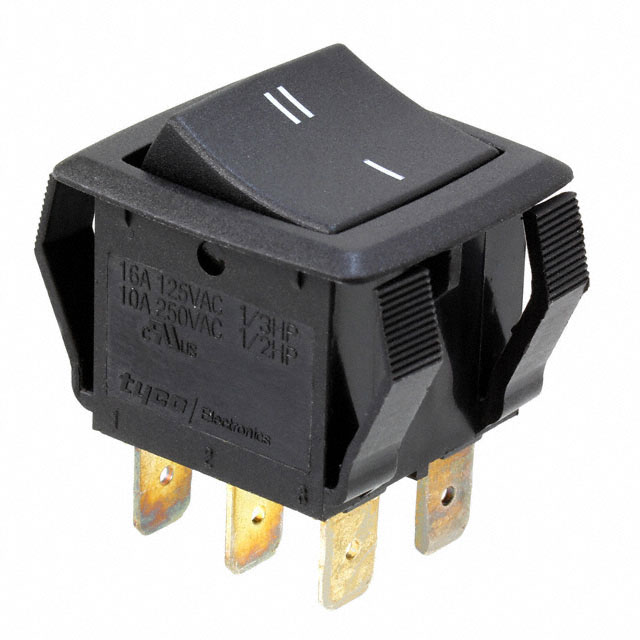

PRDDD1-16F-BB0DW
ActiveTE Connectivity Raychem Cable Protection
PRDDD1-16F-BB0DW,POWER ROCKER
Deep-Dive with AI
Search across all available documentation for this part.
PRDDD1-16F-BB0DW
ActiveTE Connectivity Raychem Cable Protection
PRDDD1-16F-BB0DW,POWER ROCKER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PRDDD1-16F-BB0DW |
|---|---|
| Actuator Marking | - = |
| Actuator Type | Concave (Curved) |
| Approval Agency | UL |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Electrical Life | 6000 Cycles |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 27.6 mm |
| Panel Cutout Dimensions [y] | 25.4 mm |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 3.89 | |
Description
General part information
PRDDD1 Series
High Power Rocker Switch, Panel Mount, 21.2 x 37 mm [1.002 x 1.086 in] Panel Cutout, Silver Contact Plating
