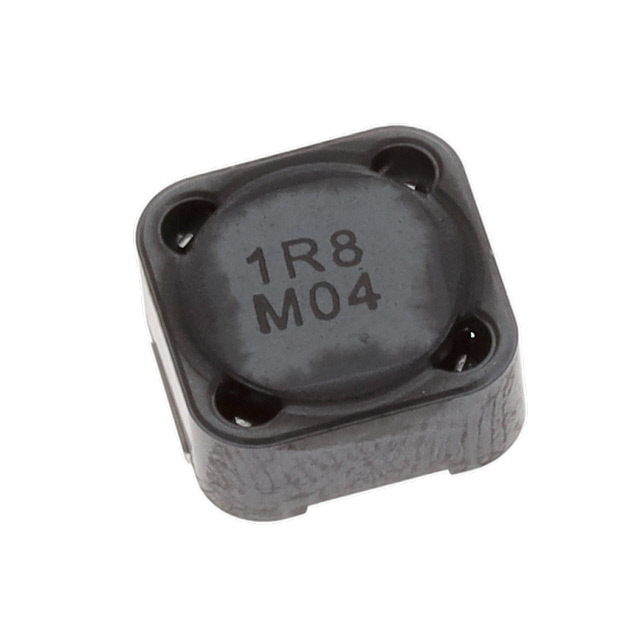

CDRH125L125NP-1R8NC
ActiveSumida America Components Inc.
FIXED IND 1.8UH 8A 10.6MOHM SMD
CDRH125L125NP-1R8NC
ActiveSumida America Components Inc.
FIXED IND 1.8UH 8A 10.6MOHM SMD
Description
General part information
CDRH125L125NP-1R8NC
1.8 µH Shielded Inductor 8 A 10.6mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CDRH125L125NP-1R8NC |
|---|---|
| Current - Saturation (Isat) | 12.6 A |
| Current Rating | 8 A |
| DC Resistance (DCR) (Max) | 10.6 mOhm |
| Height - Seated (Max) | 0.236 in |
| Inductance | 1.8 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.472 in |
| Size / Dimension Width | 0.472 in |
| Tolerance | 30 % |
