QLUXDOBAR10017W42927

Active

LTF technology LLC

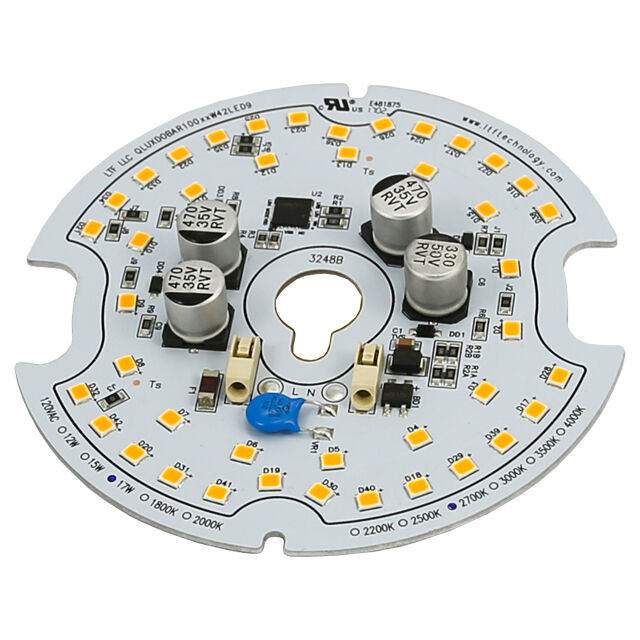

LED ENG QLUX NEUT WHT RND 2700K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QLUXDOBAR10017W42927

Active

LTF technology LLC

LED ENG QLUX NEUT WHT RND 2700K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QLUXDOBAR10017W42927	QLUX Series

CCT (K)	2700 K	2700 - 4000 K
CCT (K)	-	3000 K
CCT (K)	-	1800 K
Color	Neutral, White	Neutral, White
Configuration	Round	Linear, Rectangle, Round, Square
CRI (Color Rendering Index)	90	80 - 98
Current - Max	-	300 - 700 mA
Current - Test	-	200 - 350 mA
Features	Dimming-ELV, Triac	Dimming-ELV, Triac, Dimming, With Connector
Height	-	1 - 13 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	85 lm/W	74 - 155 lm/W
Luminous Flux @ Current/Temperature	1400 lm	450 - 4174 lm
Size / Dimension	-	0.5 - 45 mm
Size / Dimension	-	15 - 599 mm
Size / Dimension	-	10 - 300 mm
Temperature - Test	-	50 °C
Type	LED Engine	LED Engine, Chip On Board (COB)
Viewing Angle	160 °	120 - 160 °
Voltage - Forward (Vf) (Typ)	120 VAC	34 - 120 VAC

QLUX Series

LED ENG QLUX NEUT WHT LNR 3000K

Part	Height [z]	Lens Type	Voltage - Forward (Vf) (Typ)	Viewing Angle	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [x]	Color	Features	Luminous Flux @ Current/Temperature	CCT (K)	Configuration	Type	Lumens/Watt @ Current - Test	Current - Test	CCT (K) [Max]	CCT (K) [Min]	Current - Max [Max]	Size / Dimension [diameter]	Temperature - Test
LTF technology LLC QLUXDOBAL59925W84930	13 mm	Flat	120 VAC	160 °	93	38 mm	599 mm	Neutral, White	Dimming-ELV, Triac	2200 lm	3000 K	Linear	LED Engine	94 lm/W
LTF technology LLC QLUXDOBAL29205W56930		Flat	120 VAC	160 °	92	38 mm	292 mm	Neutral, White	Dimming-ELV, Triac	500 lm	3000 K	Linear	LED Engine	93 lm/W
LTF technology LLC QLUXCOBI1512932WD-P1	1.5 mm	Flat	34 V		98	12 mm	15 mm	Neutral, White	Dimming	1200 lm		Rectangle	Chip On Board (COB)	82 lm/W	350 mA	3000 K	1800 K	350 mA
LTF technology LLC QLUXL15224LED9030		Flat	36 V	120 °	90	0.5 in	152 mm	Neutral, White	Dimming	792 lm	3000 K	Linear	LED Engine	120 lm/W	200 mA			300 mA
LTF technology LLC QLUX10W350C28V27K9CR	3.5 mm	Flat		160 °	90	41.95 mm	83.9 mm	Neutral, White	With Connector	822 lm	2700 K	Rectangle	LED Engine	83 lm/W	350 mA			350 mA
LTF technology LLC QLUXCOBI15129027-PH	1.5 mm	Flat	34 V		98	12 mm	15 mm	Neutral, White		1200 lm	2700 K	Rectangle	Chip On Board (COB)	96 lm/W	350 mA			350 mA
LTF technology LLC QLUXR7615W48LED1		Flat	36 V	120 °	90			Neutral, White	Dimming	1800 lm	3000 K	Round	LED Engine	120 lm/W				600 mA	76.2 mm
LTF technology LLC QLUXDOBAR10017W42WDM		Flat	120 VAC	160 °	90			Neutral, White	Dimming-ELV, Triac	1250 lm		Round	LED Engine	74 lm/W		3000 K	1800 K
LTF technology LLC QLUXL57524W48LED850L		Flat		120 °	80	25.4 mm	575 mm	Neutral, White	Dimming	1300 lm		Linear	LED Engine	155 lm/W	350 mA					50 °C
LTF technology LLC QLUXDOBAS25436W930		Flat	120 VAC	160 °	96			Neutral, White	Dimming-ELV, Triac	3682 lm	3000 K	Square	LED Engine	100 lm/W					10 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 12.87
		10	$ 12.04
		50	$ 11.38
		100	$ 10.72
		500	$ 9.56
		1000	$ 8.41

Description

General part information

QLUX Series

LED Lighting COBs Engines Modules LED Engine QLUX White, Neutral Round

Documents

Technical documentation and resources
