WSBS8518L1250JK
ActiveVishay Dale
RESISTOR SHUNT 125 UOHM 5% 36W
WSBS8518L1250JK
ActiveVishay Dale
RESISTOR SHUNT 125 UOHM 5% 36W
Description
General part information
WSBS8518L1250JK

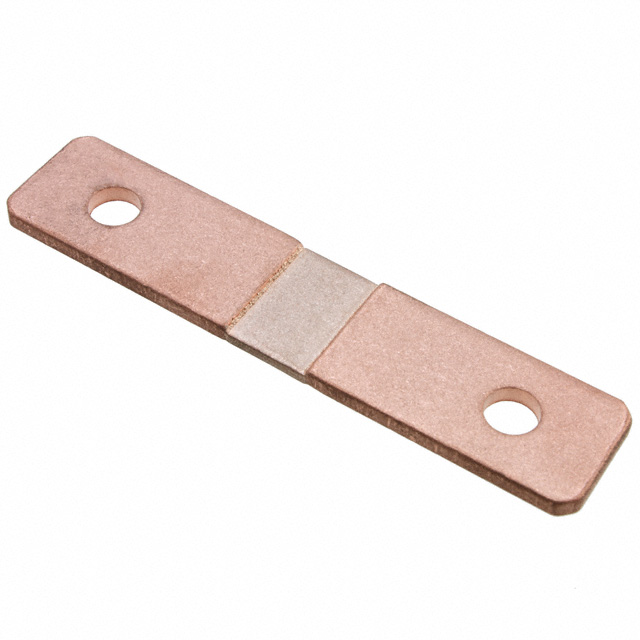

125 µOhms ±5% 36W Shunt, Battery Specialized Resistor Metal Element ±225ppm/°C Shunt Fixture, 60mm Pitch
Technical Specifications
Parameters and characteristics for this part
| Specification | WSBS8518L1250JK |
|---|---|
| Composition | Metal Element |
| Mounting Size | 60 mm |
| Mounting Type | Shunt Fixture, Pitch |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Power (Watts) | 36 W |
| Resistance | 125 µOhms |
| Temperature Coefficient | 225 ppm/°C |
| Tolerance | 5 % |
| Type | Battery, Shunt |
