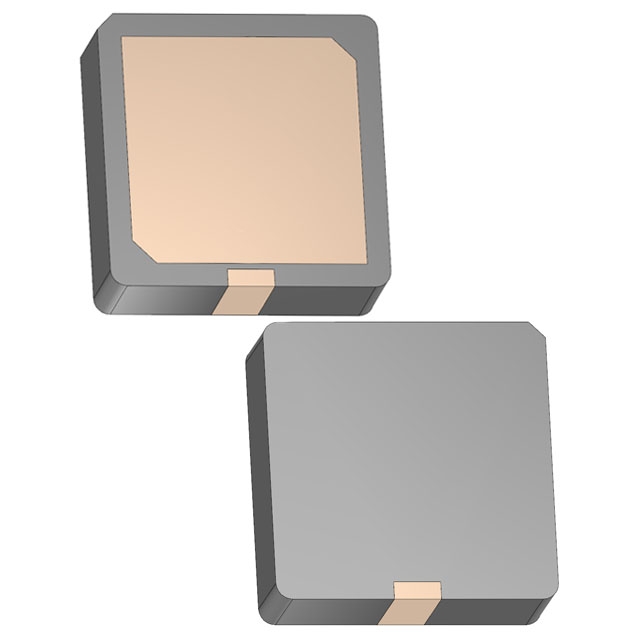

APARN1204-S2450
ActiveAbracon LLC
COMP WIFI/BLUETOOTH/BLE PTCH ANT
APARN1204-S2450
ActiveAbracon LLC
COMP WIFI/BLUETOOTH/BLE PTCH ANT
Description
General part information
APARN1204-S2450
RF ANTENNA Bluetooth, ISM, Wi-Fi, Zigbee™ Ceramic Patch Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | APARN1204-S2450 |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | Zigbee™, Bluetooth, ISM, Wi-Fi |
| Frequency (Center/Band) | 2.45 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 2 dBi |
| Height (Max) | 0.157 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Return Loss | -7 dB |
| RF Family/Standard | 802.15.4, Bluetooth, General ISM, WiFi |
| Termination | Solder |
| VSWR | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
