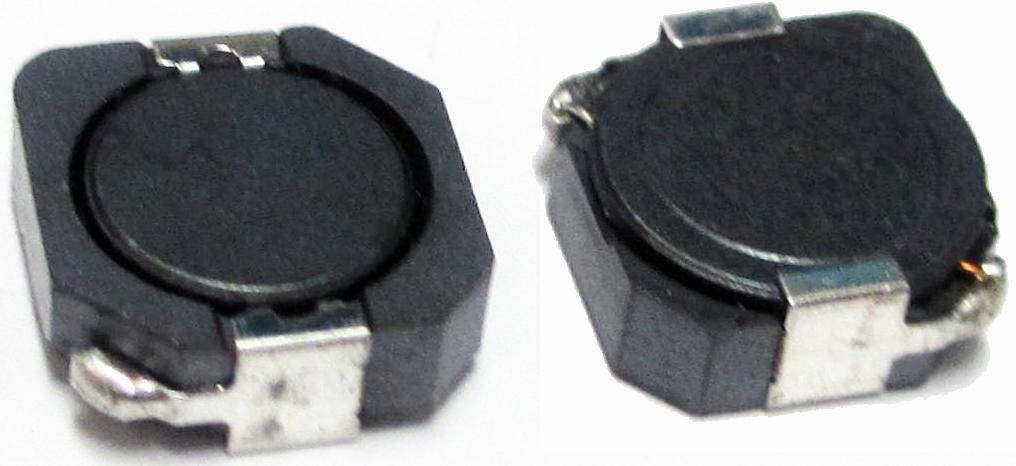

ASPI-104S-100M-T
ActiveAbracon LLC
INDUCTOR POWER SHIELDED WIREWOUND 10UH 20% 100KHZ FERRITE 3.8A 0.035OHM DCR T/R
ASPI-104S-100M-T
ActiveAbracon LLC
INDUCTOR POWER SHIELDED WIREWOUND 10UH 20% 100KHZ FERRITE 3.8A 0.035OHM DCR T/R
Description
General part information
ASPI-104S-100M-T
10 µH Shielded Drum Core, Wirewound Inductor 3.8 A 35mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | ASPI-104S-100M-T |
|---|---|
| Current - Saturation (Isat) | 4.4 A |
| Current Rating | 3.8 A |
| DC Resistance (DCR) (Max) | 35 mOhm |
| Height - Seated (Max) | 0.157 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.398 in |
| Size / Dimension Width | 0.394 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
