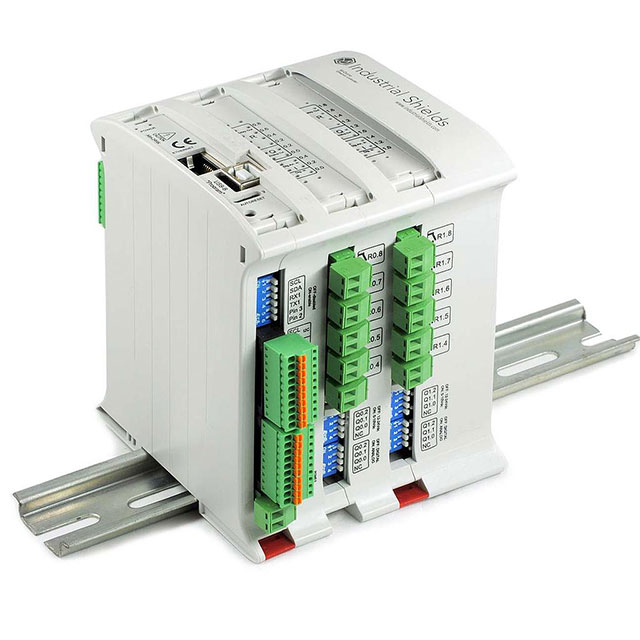

IS.MDUINO.38AR+

Active

Industrial Shields

PLC, M-DUINO, ETHERNET, 38AR I/O ANALOGUE/DIGITAL PLUS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsOperating Instructions EN Datasheet

IS.MDUINO.38AR+

Active

Industrial Shields

PLC, M-DUINO, ETHERNET, 38AR I/O ANALOGUE/DIGITAL PLUS

Deep-Dive with AI

DocumentsOperating Instructions EN Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 591.32
		10	$ 457.15
Newark	Each	1	$ 437.65

Description

General part information

IS.MD Series

Programmable Logic Controller (PLC) DIN Rail 12 ~ 24VDC

Documents

Technical documentation and resources

Operating Instructions EN

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IS.MDUINO.38AR+	IS.MD Series

Communications	RS-232, USB, RS-485, Ethernet	RS-232, USB, RS-485, Ethernet
Display Type	No Display	No Display
Expandable [Max]	127 Modules	127 Modules
Features	Power Supply, Manual, Cable	Power Supply, Manual, Cable
Memory Size	2 Gbit	2 Gbit
Mounting Type	DIN Rail	DIN Rail
Number of Inputs and Type	-	36
Number of Inputs and Type	-	20
Number of Inputs and Type	-	16
Number of Inputs and Type [custom]	9	4 - 15
Number of Inputs and Type [custom]	10	6 - 14
Number of Outputs and Type	-	3 - 10
Number of Outputs and Type [custom]	6	6 - 8
Number of Outputs and Type [custom]	8	8 - 23
Number of Outputs and Type [custom]	5	5 - 14
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Voltage - Supply [Max]	24 V	24 V
Voltage - Supply [Min]	12 V	12 V

IS.MD Series

PLC, M-DUINO, ETHERNET, 38AR I/O ANALOGUE/DIGITAL PLUS

Part	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Expandable [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Display Type	Features	Communications	Mounting Type	Memory Size	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Number of Outputs and Type
Industrial Shields IS.MDUINO.38AR+	9	10	127 Modules	24 V	12 V	60 °C	No Display	Cable, Manual, Power Supply	Ethernet, RS-232, RS-485, USB	DIN Rail	2 Gbit	6	8	5
Industrial Shields IS.MDUINO.54ARA+	15	14	127 Modules	24 V	12 V	60 °C	No Display	Cable, Manual, Power Supply	Ethernet, RS-232, RS-485, USB	DIN Rail	2 Gbit	8	8	9
Industrial Shields IS.MDUINO.58+			127 Modules	24 V	12 V	60 °C	No Display	Cable, Manual, Power Supply	Ethernet, RS-232, RS-485, USB	DIN Rail	2 Gbit	8		14	36	20	16
Industrial Shields IS.MDUINO.57R+	6	12	127 Modules	24 V	12 V	60 °C	No Display	Cable, Manual, Power Supply	Ethernet, RS-232, RS-485, USB	DIN Rail	2 Gbit	8	23
Industrial Shields IS.MDUINO.21+	7	6	127 Modules	24 V	12 V	60 °C	No Display	Cable, Manual, Power Supply	Ethernet, RS-232, RS-485, USB	DIN Rail	2 Gbit							3, 5
Industrial Shields IS.MDUINO.38R+	4	8	127 Modules	24 V	12 V	60 °C	No Display	Cable, Manual, Power Supply	Ethernet, RS-232, RS-485, USB	DIN Rail	2 Gbit	6	16
Industrial Shields IS.MDUINO.42+	14	12	127 Modules	24 V	12 V	60 °C	No Display	Cable, Manual, Power Supply	Ethernet, RS-232, RS-485, USB	DIN Rail	2 Gbit							6, 10
