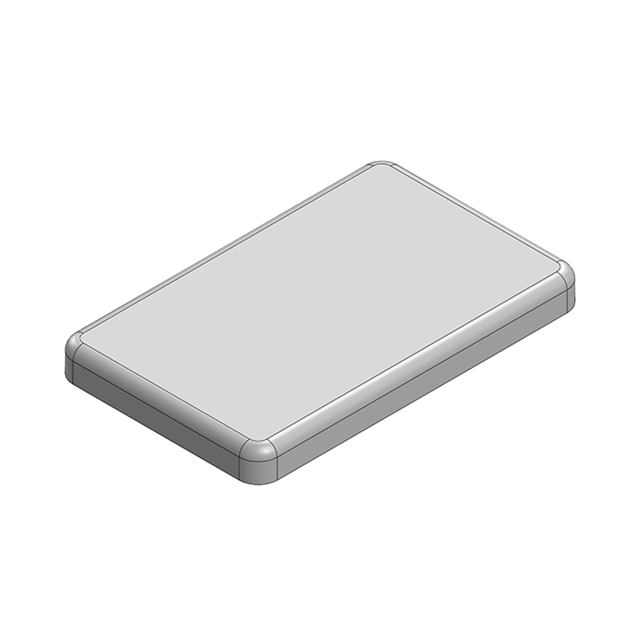

MS345-20S
ActiveMasach Tech Ltd.
RF SHIELD 0.846"X1.358" SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
MS345-20S
ActiveMasach Tech Ltd.
RF SHIELD 0.846"X1.358" SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS345-20S |
|---|---|
| Height - Overall [z] | 0.126 in |
| Height - Overall [z] | 3.2 mm |
| Length - Overall [x] | 1.358 in |
| Length - Overall [x] | 34.5 mm |
| Mounting Type | Solder |
| Type | Shield, 1-Piece |
| Ventilation | Non-Vented |
| Width - Overall [y] | 0.846 " |
| Width - Overall [y] | 21.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.31 | |
| 10 | $ 1.45 | |||
| 50 | $ 1.08 | |||
| 100 | $ 0.96 | |||
| 250 | $ 0.84 | |||
| 450 | $ 0.77 | |||
| 950 | $ 0.70 | |||
| 2400 | $ 0.63 | |||
| 4900 | $ 0.60 | |||
Description
General part information
MS345 Series
RF Shield Shield, 1-Piece 0.846" (21.50mm) X 1.358" (34.50mm) Non-Vented Solder
