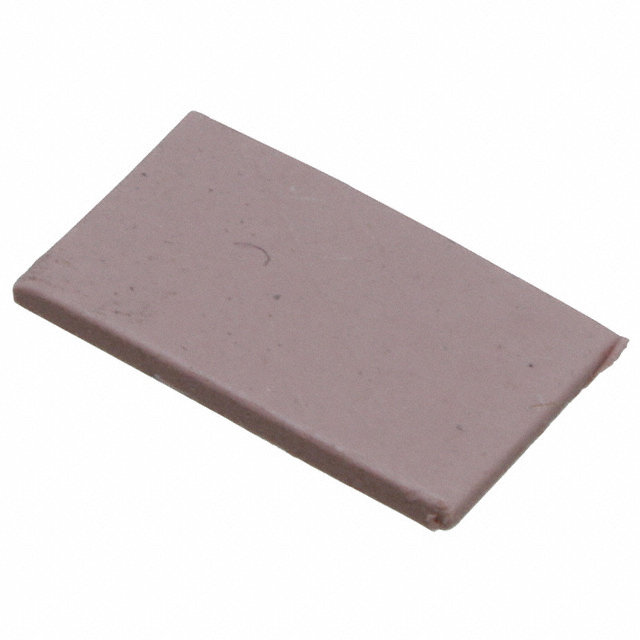

Specification	TG-A6050-3-15.9-1.0

Adhesive	Tacky - Both Sides
Color	Red
Material	Silicone Elastomer
Outline Length	15.9 mm
Outline Width	3 mm
Shape	Rectangular
Shelf Life	24 Months
Thermal Conductivity	6 W/m-K
Thickness	0.0394 in
Type	Sheet, Conductive Pad

TG-A6050 Series

Part	Shelf Life	Adhesive	Color	Thickness	Shape	Outline Width	Outline Length	Thermal Conductivity	Type	Material
t-Global Technology TG-A6050-5-5-0.5	24 Months	Tacky - Both Sides	Red	0.0197 in	Square	5 mm	5 mm	6 W/m-K	Conductive Pad Sheet	Silicone Elastomer
t-Global Technology TG-A6050-320-320-0.8	24 Months	Tacky - Both Sides	Red	0.032 in	Square	320 mm	320 mm	6 W/m-K	Conductive Pad Sheet	Silicone Elastomer
t-Global Technology TG-A6050-20-10-1.0	24 Months	Tacky - Both Sides	Red	0.0394 in	Rectangular	10 mm	20 mm	6 W/m-K	Conductive Pad Sheet	Silicone Elastomer
t-Global Technology TG-A6050-10-10-1.0	24 Months	Tacky - Both Sides	Red	0.0394 in	Square	10 mm	10 mm	6 W/m-K	Conductive Pad Sheet	Silicone Elastomer
t-Global Technology TG-A6050-150-150-1.0	24 Months	Tacky - Both Sides	Red	0.0394 in	Square	150 mm	150 mm	6 W/m-K	Conductive Pad Sheet	Silicone Elastomer
t-Global Technology TG-A6050-25-25-1.0	24 Months	Tacky - Both Sides	Red	0.0394 in	Square	25 mm	25 mm	6 W/m-K	Conductive Pad Sheet	Silicone Elastomer
t-Global Technology TG-A6050-25-20-5.0	24 Months	Tacky - Both Sides	Red	0.197 in	Rectangular	20 mm	25 mm	6 W/m-K	Conductive Pad Sheet	Silicone Elastomer
t-Global Technology TG-A6050-25-25-2.0	24 Months	Tacky - Both Sides	Red	0.079 in	Square	25 mm	25 mm	6 W/m-K	Conductive Pad Sheet	Silicone Elastomer
t-Global Technology TG-A6050-150-150-5.0	24 Months	Tacky - Both Sides	Red	0.197 in	Square	150 mm	150 mm	6 W/m-K	Conductive Pad Sheet	Silicone Elastomer
t-Global Technology TG-A6050-19.5-12.7-2.0	24 Months	Tacky - Both Sides	Red	0.079 in	Rectangular	12.7 mm	19.5 mm	6 W/m-K	Conductive Pad Sheet	Silicone Elastomer

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Thermal Pad Tolerance

Die-Cut Tolerence Guide
