SML-LX3632SISUGSBC

Active

Lumex Opto/Components Inc.

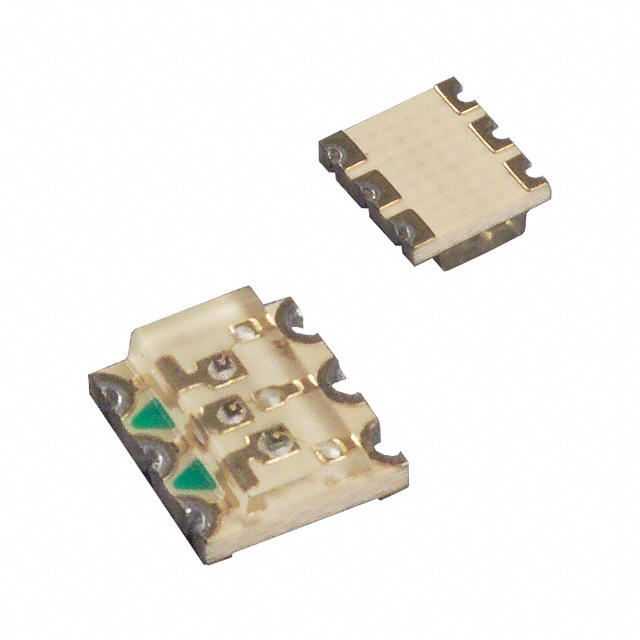

LED RGB CLEAR 3632 SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED RGB CLEAR 3632 SMD

Technical Specifications

Parameters and characteristics for this part

LED RGB CLEAR 3632 SMD

Part	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Mounting Type	Configuration	Lens Color	Lens Style	Height (Max) [Max] [z]	Package / Case	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Lens Size [y]	Lens Size [x]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Lens Transparency	Color	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]
Lumex Opto/Components Inc. SML-LX3632SISUGSBC	636 nm	430 nm	574 nm	50 mcd	60 mcd	75 mcd	Surface Mount	Independent	Colorless	Rectangle with Flat Top	1.1 mm	6-SMD, No Lead	3632	2 V, 2.2 V, 3.5 V	3.6 mm	1.9 mm	20 mA	20 mA	20 mA	Clear	Blue, Green, Red	120 °	3.6 mm	3.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) LED Indication - Discrete 2V Red, 2.2V Green, 3.5V Blue 6-SMD, No Lead

Technical documentation and resources

No documents available
