MNHU18-250DMIK

Active

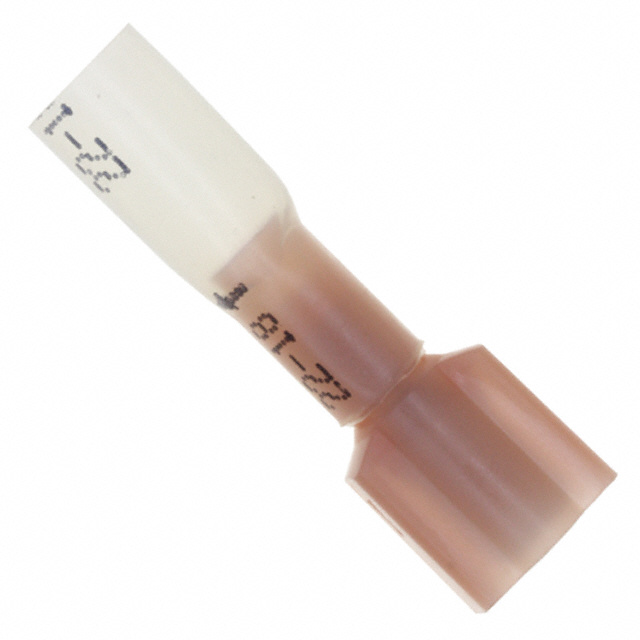

FULLY NYLON INSULATED BUTTED SEAM MALE H/S DISCONNECT (BULK)

Search across all available documentation for this part.

Active

FULLY NYLON INSULATED BUTTED SEAM MALE H/S DISCONNECT (BULK)

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN QC RCPT 18-22AWG 0.250 25PC

Part	Length - Overall [x]	Length - Overall [x]	Termination	Tab Thickness	Tab Thickness	Gender	Contact Finish	Insulation	Contact Material	Mounting Type	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Color	Features	Tab Width	Tab Width
3M MNHU18-250DFIX-BOTTLE	30.48 mm	1.2 in	Crimp	0.032 in	0.81 mm	Female	Tin	Fully Insulated Heat Shrink	Brass	Free Hanging (In-Line)	Standard	22 AWG	17.5 AWG	Red	Butted Seam	6.35 mm	0.25 in
3M MNHU18-250DMIK	30.48 mm	1.2 in	Crimp	0.032 in	0.81 mm	Male	Tin	Fully Insulated Heat Shrink	Copper	Free Hanging (In-Line)	Standard	22 AWG	17.5 AWG	Red	Butted Seam	6.35 mm	0.25 in
3M MNHU18-250DMIX-BOTTLE	30.48 mm	1.2 in	Crimp	0.032 in	0.81 mm	Male	Tin	Fully Insulated Heat Shrink	Copper	Free Hanging (In-Line)	Standard	22 AWG	17.5 AWG	Red	Butted Seam	6.35 mm	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Male 18-22 AWG Crimp Connector Fully Insulated Heat Shrink
