1619334
ActivePhoenix Contact

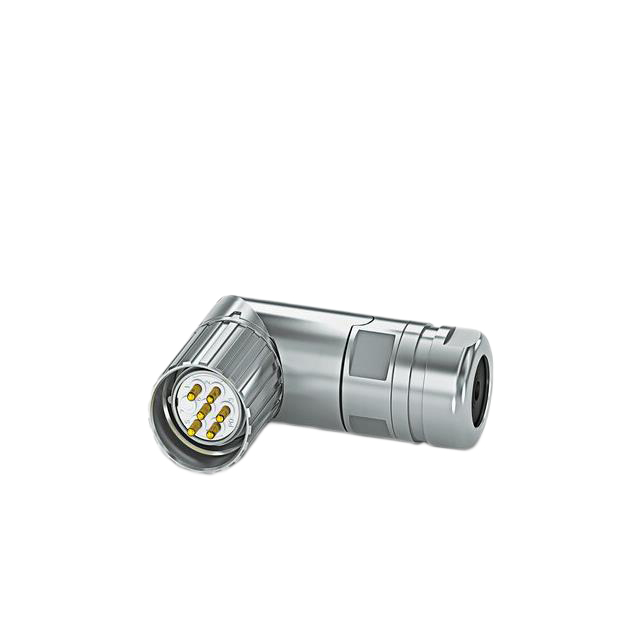

CABLE CONNECTOR, ANGLED, SHIELDE
1619334
ActivePhoenix Contact
CABLE CONNECTOR, ANGLED, SHIELDE
Description
General part information
1619334
9 (8 + 1 Power) Position Circular Connector Plug, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 1619334 |
|---|---|
| Cable Opening (Max) | 0.571 in |
| Cable Opening (Min) | 0.118 in |
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating Options | 20A, 8A |
| Fastening Type | Threaded |
| Features | Coupling Nut, Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | PBT, Polybutylene Terephthalate |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions (Normal) | 8 |
| Number of Positions (Power) | 1 |
| Number of Positions (Total) | 9 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Gadolinium-Zinc |
| Shell Size - Insert | M23-9 |
| Shielding | Shielded |
| Termination | Solder Cup |
| Voltage Rating (AC) | 48 VAC |
| Voltage Rating (DC) | 74 VDC |
